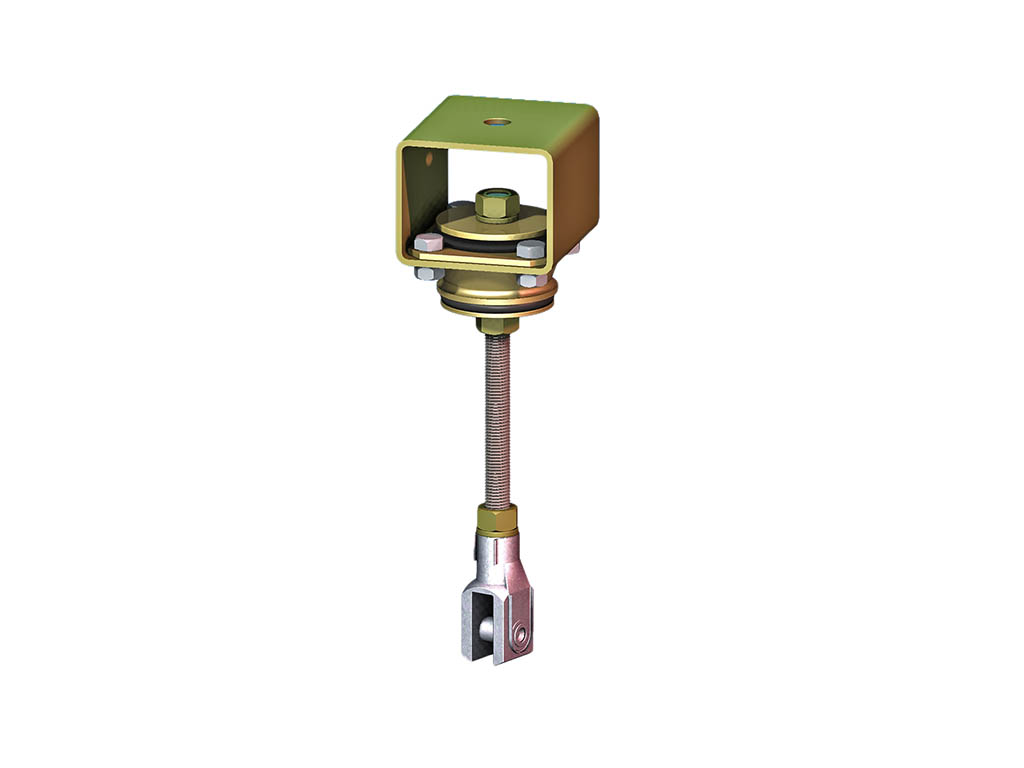

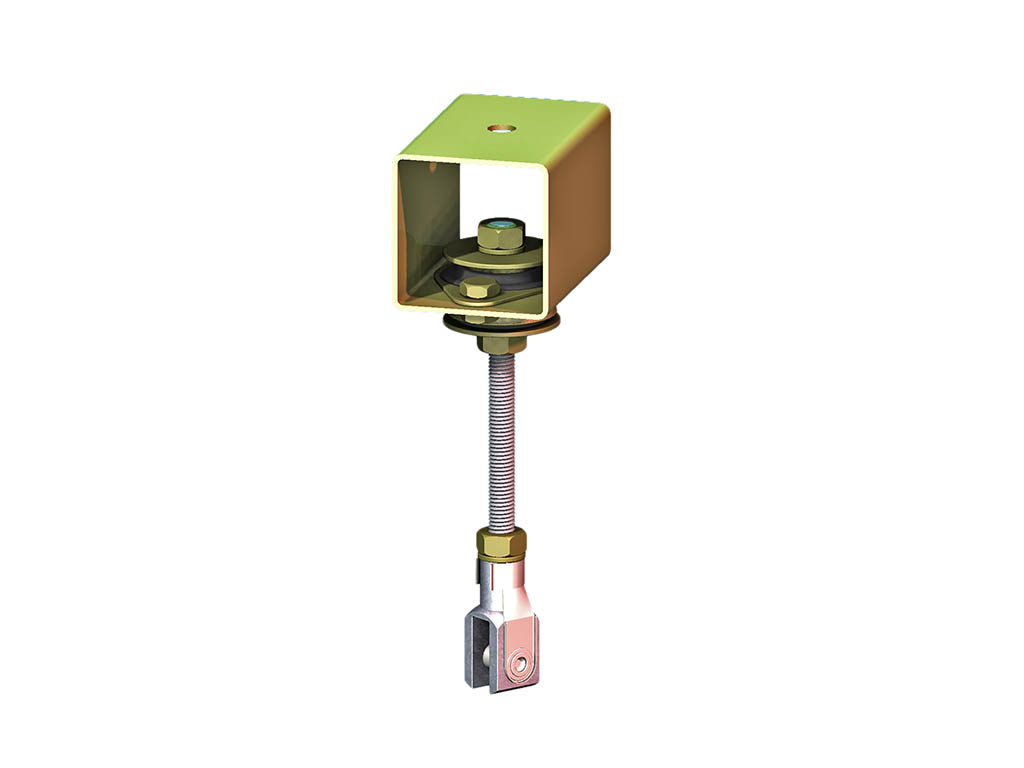

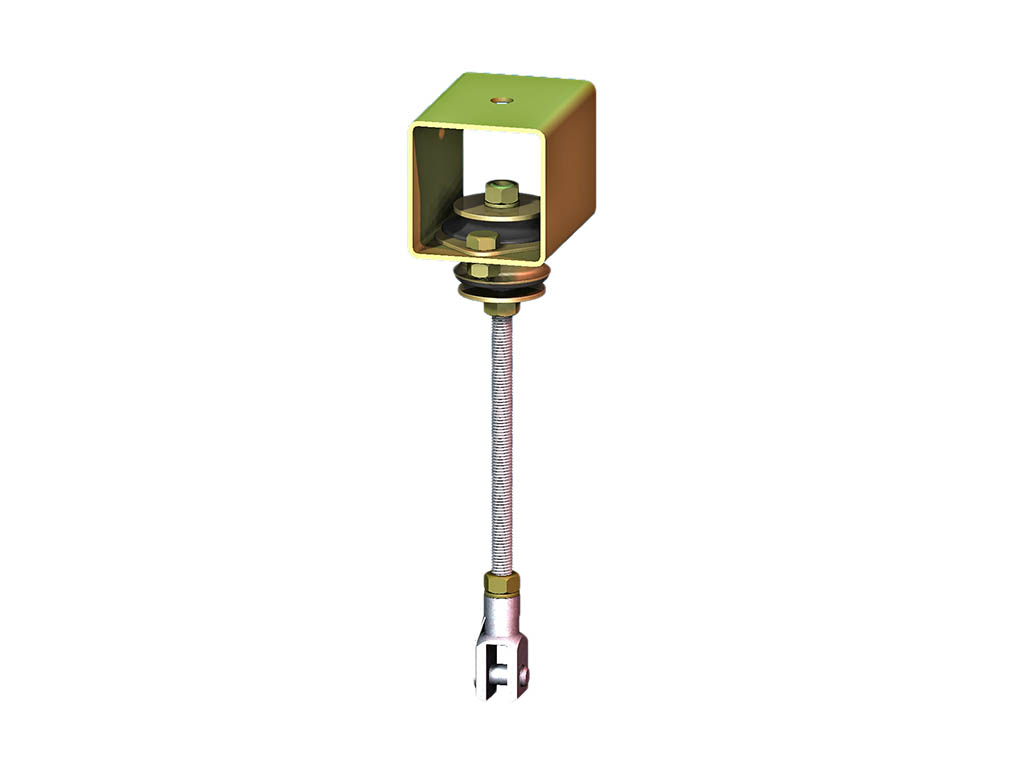

HSA-type Flexible Stabilizers are used to isolate and stabilize suspended pipe sections.

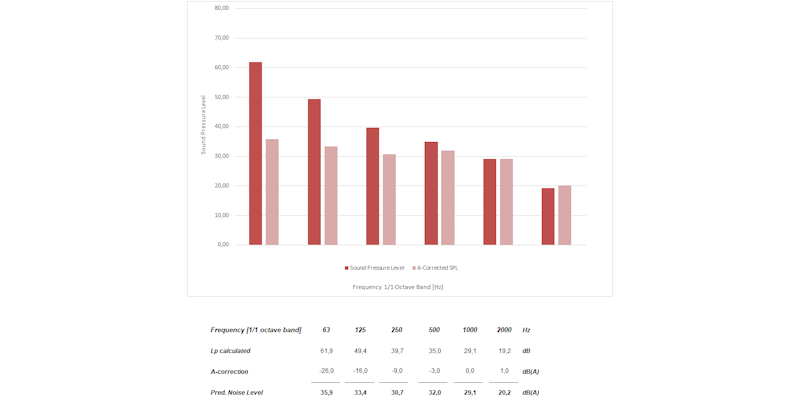

In the dynamic landscape of maritime design and construction, accurate noise level prediction is a critical component. Leveraging advanced computer models, our services are tailored to align with your final insulation plan, ensuring optimal noise management throughout your vessel.

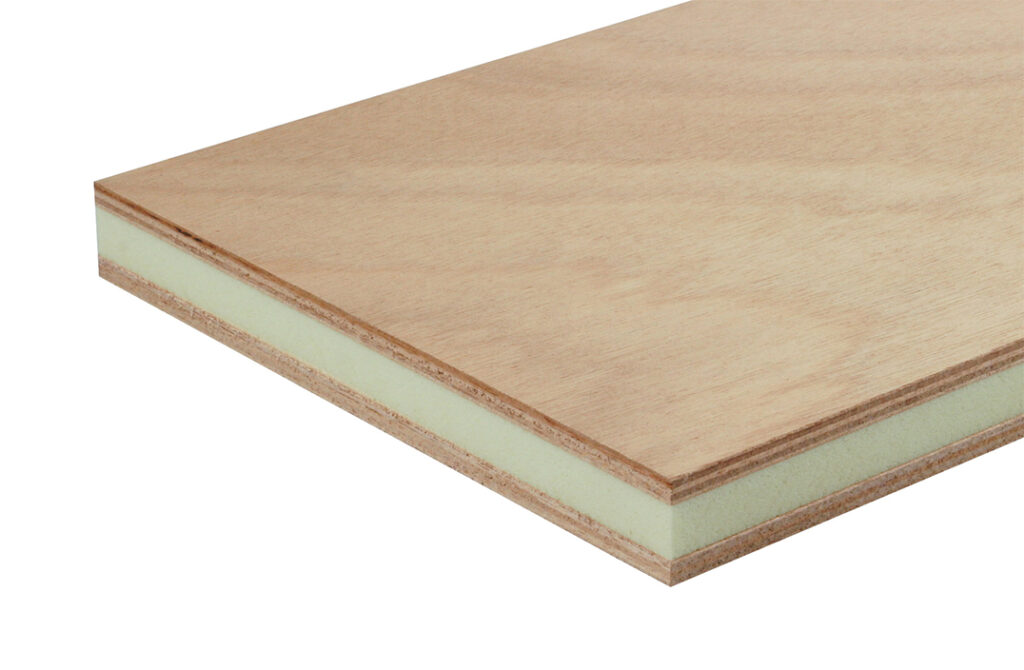

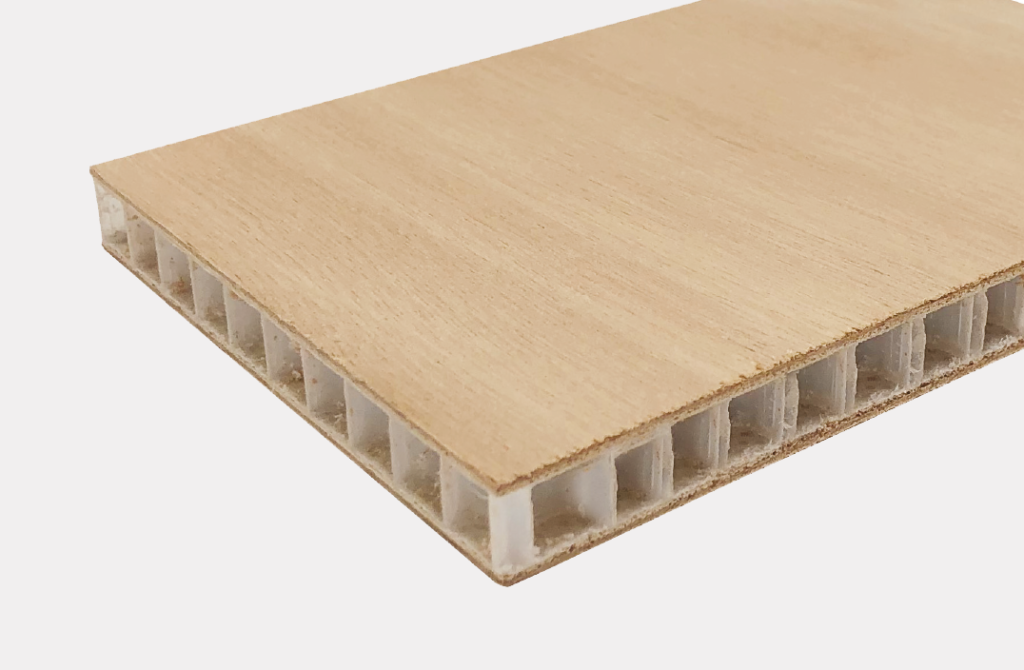

have excellent construction properties. The panels are made in standard sizes as well as special structures.

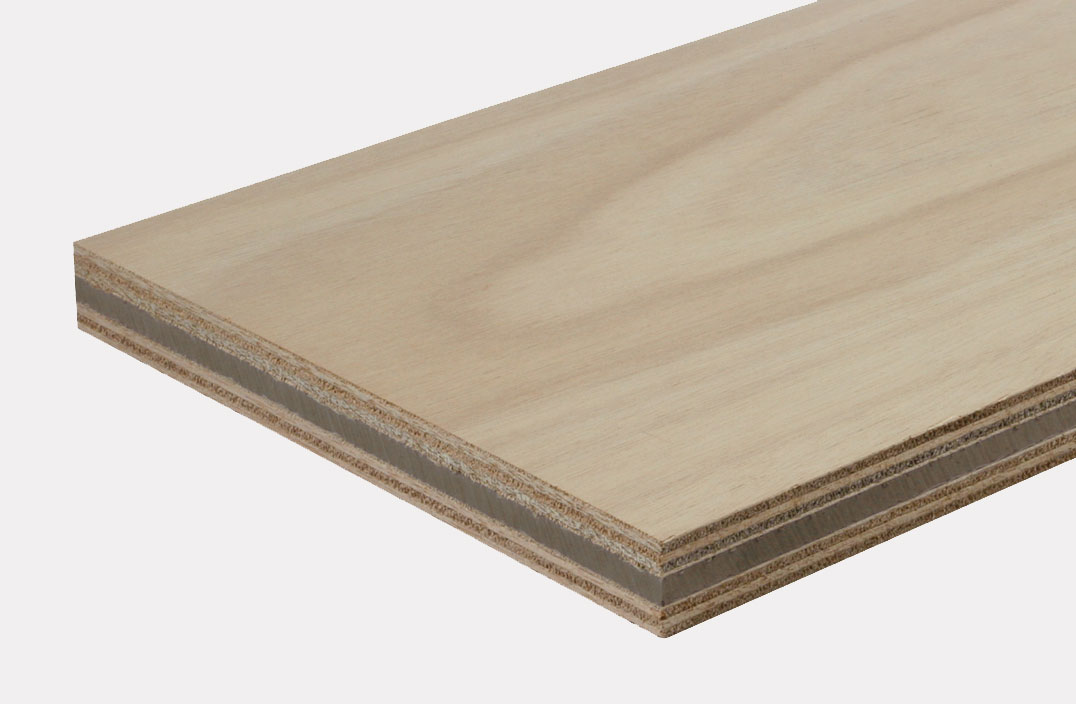

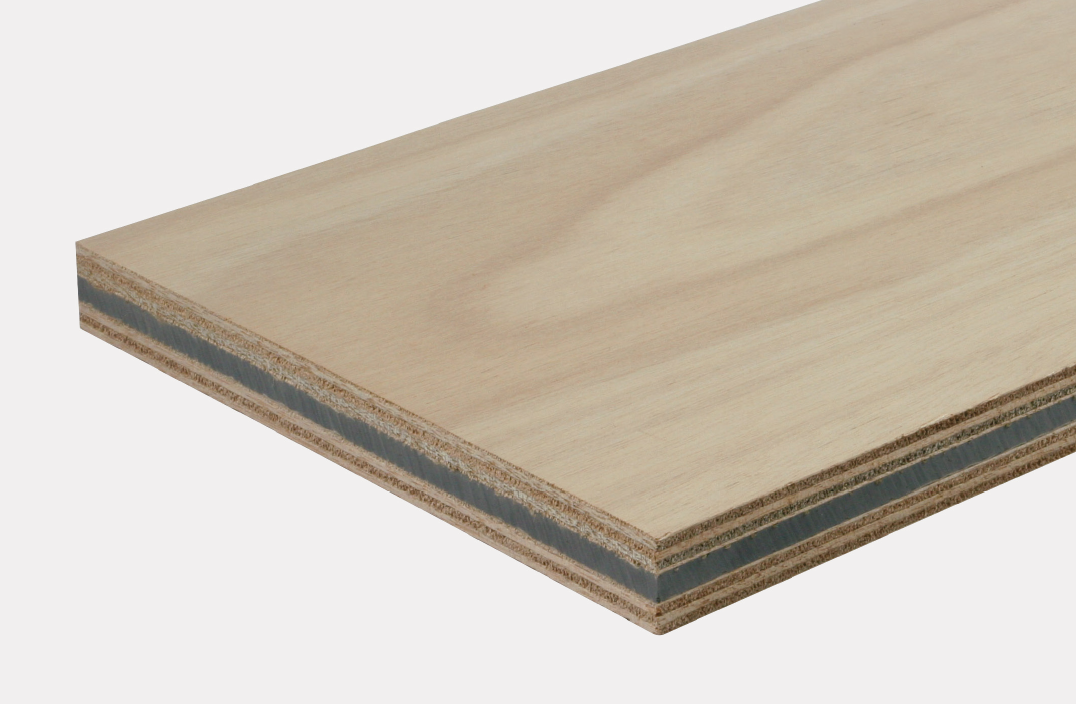

SONOPANEL X distinguishes itself by the outstanding insulation value in the 125 Hz band. The Rw value is equal to the values of BARYFLOOR X. The core of this panel is made from a heavy rubber matting.

Average installed insulation is about 25 dB, a figure which is further improved by compressed installation. The standard flange range is made of carbon steel S235JR, drilled according to DIN PN10/16 and electrolytic galvanized.

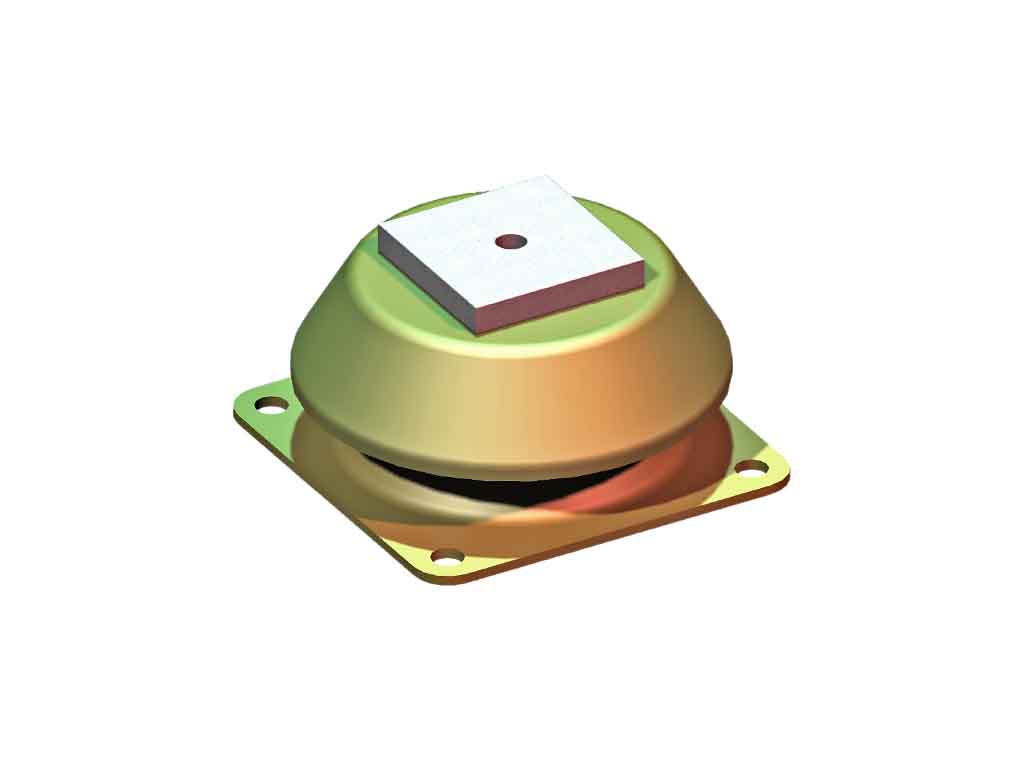

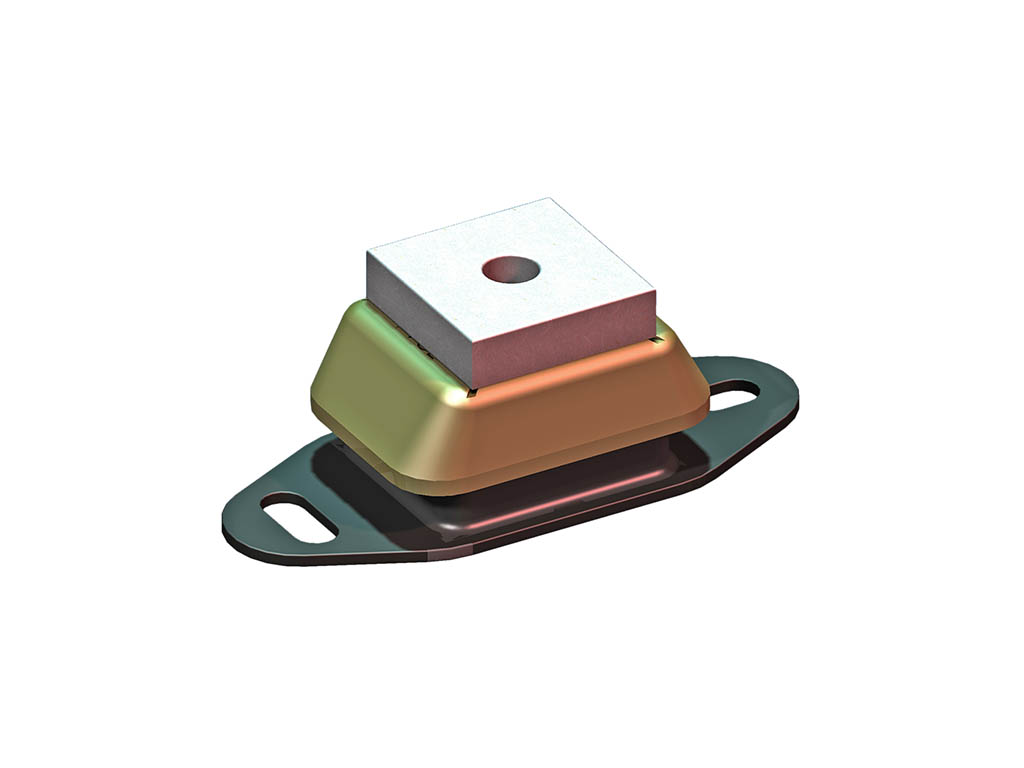

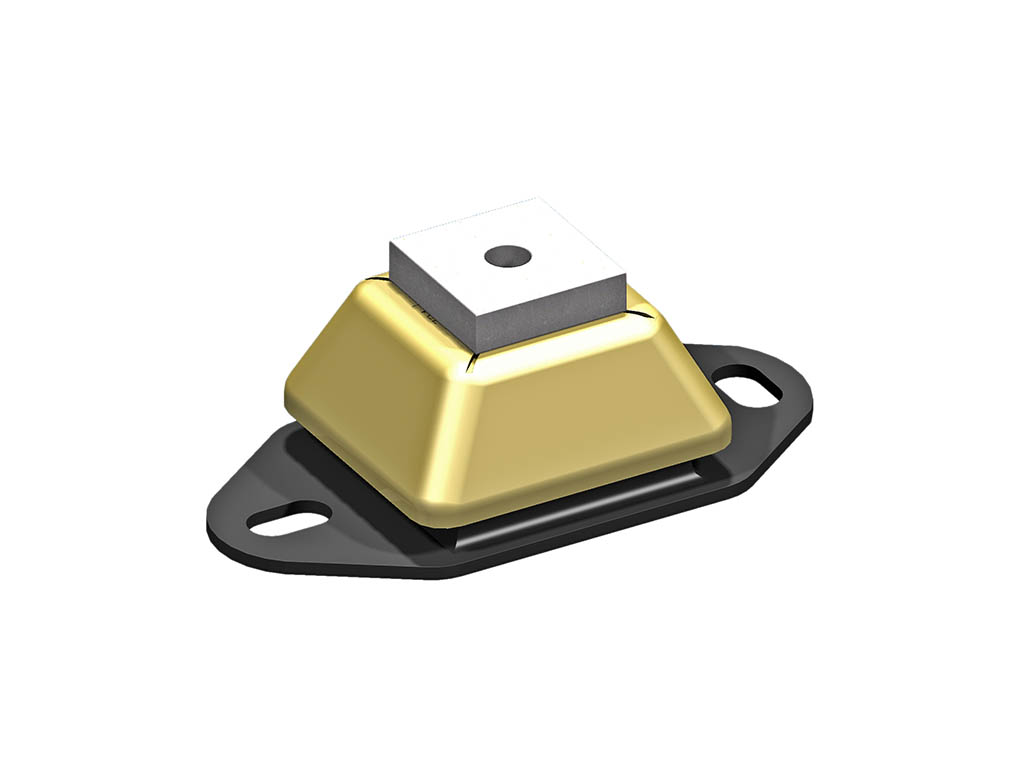

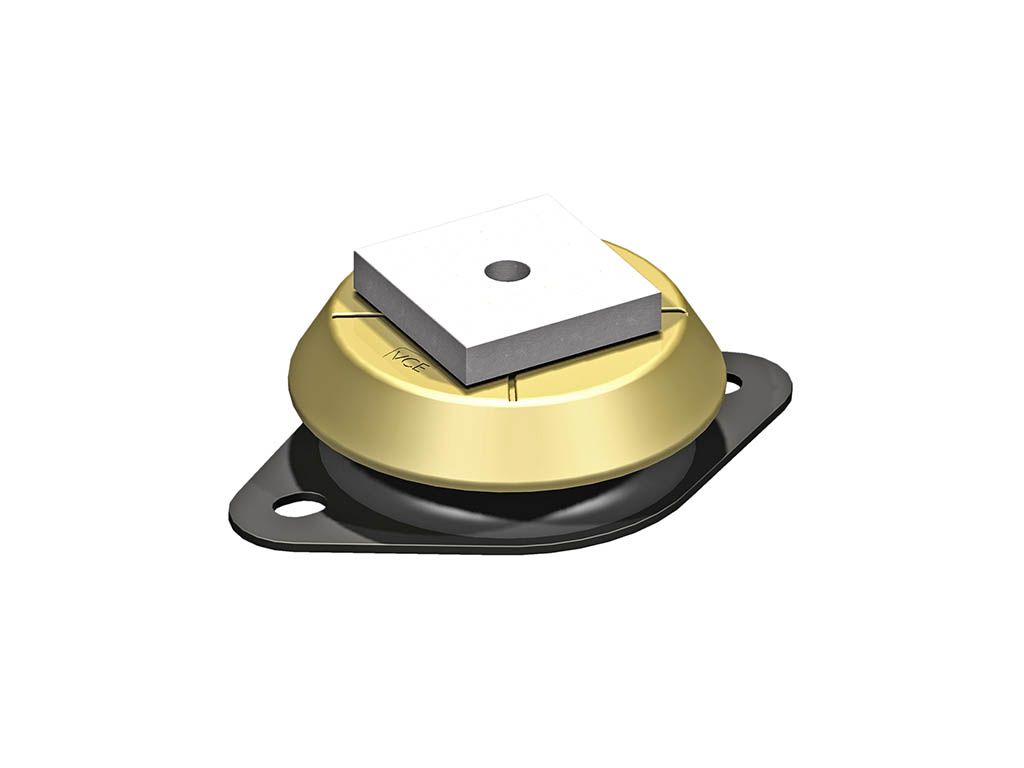

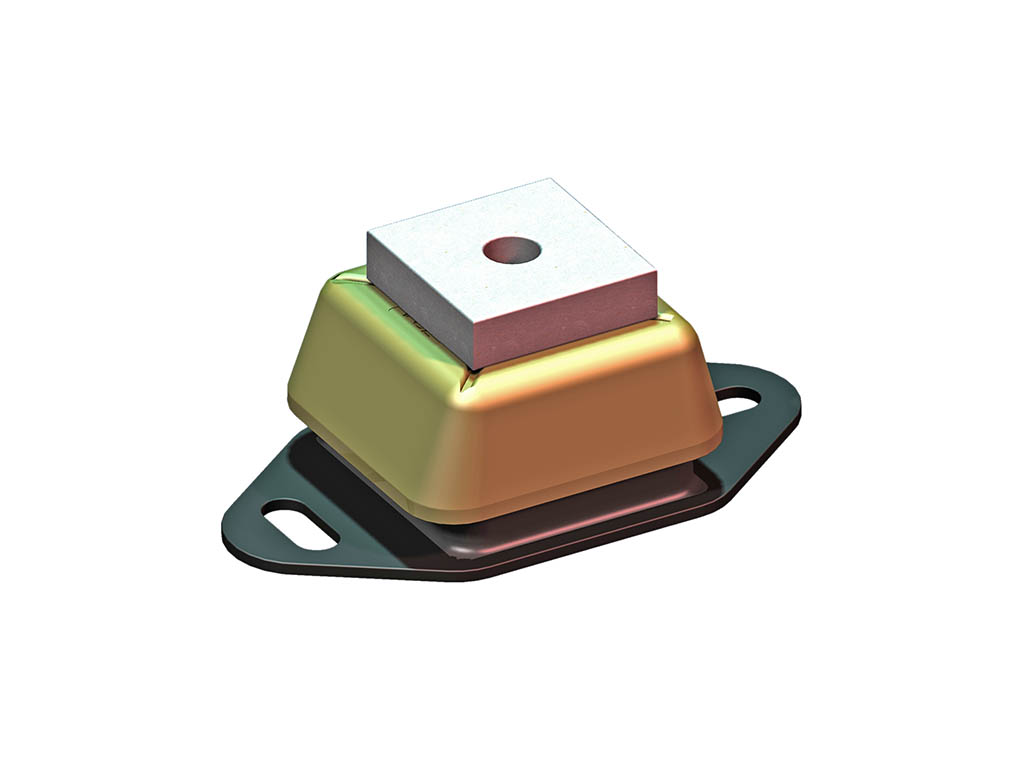

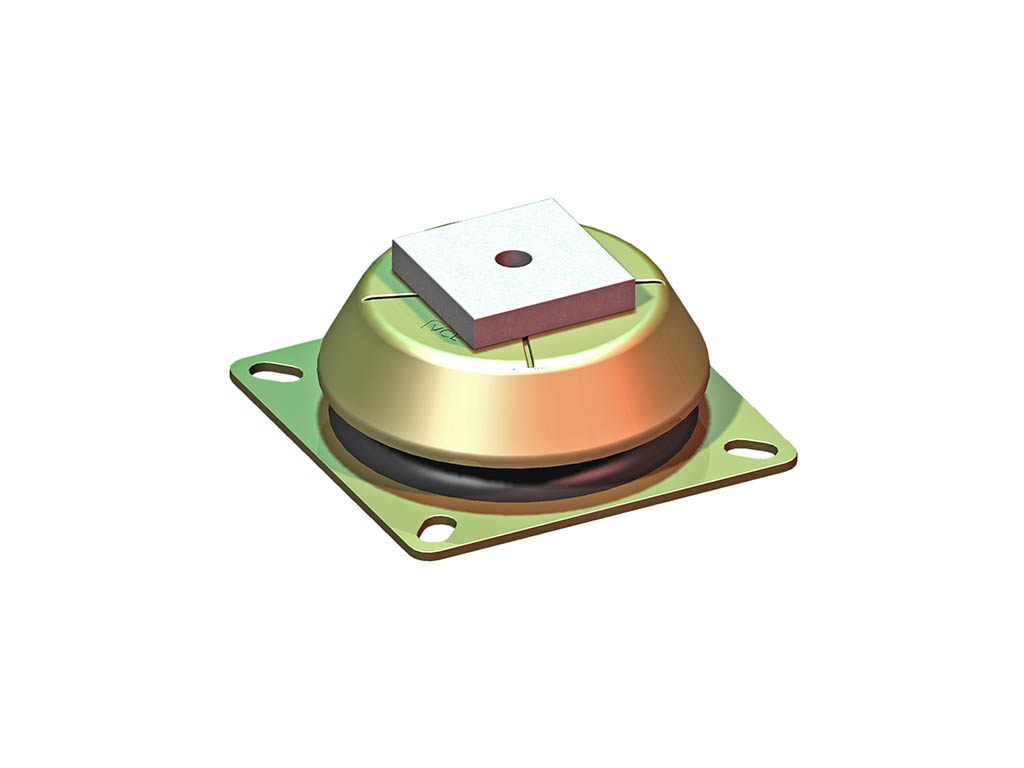

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

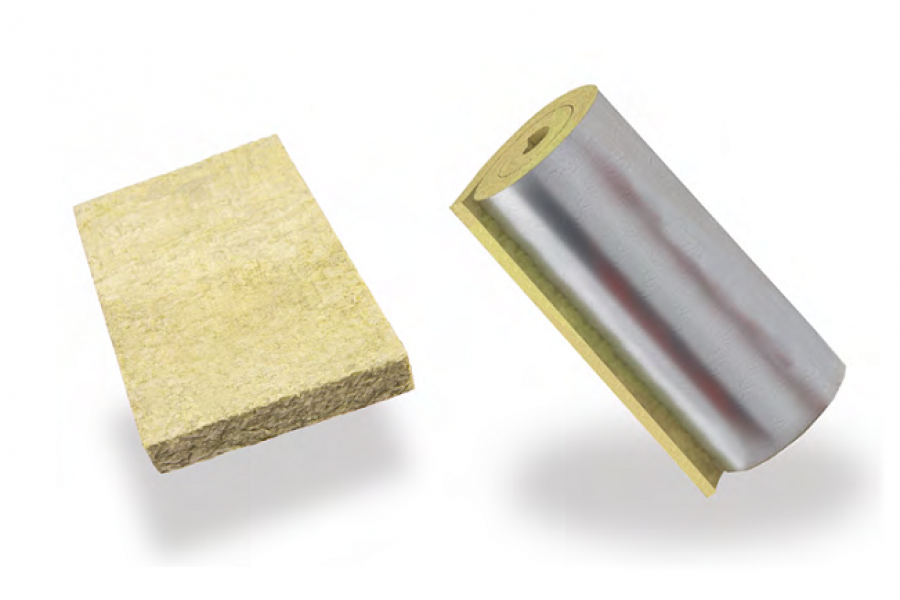

SeaRox FB 6020 is a lightweight stone wool insulation slab (board).

Sliced veneer available in: 0.6 mm, 1,4 mm and 2,4 mm Round logs cut into: 27 mm, 34 mm, 41 mm and 53 mm Deck strips available in: 10 x 40 mm, 12 x 48 mm and 15 x 48 mm

Rubber Design has developed a unique type of watertight exhaust pipe penetration. This system is certified to handle a pressure up to 0,6 bar (6m) for 30 minutes.

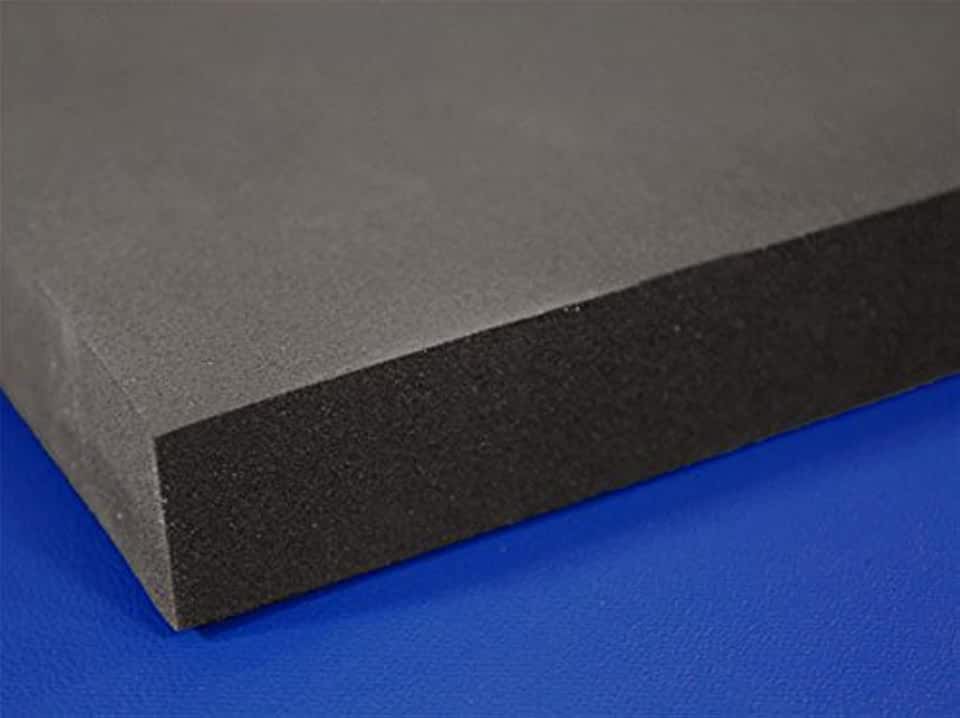

InnoFoams is open-celled, impregnated polyurethane foam black for acoustic insulation. It absorbs a mineral component which increases the ability of flame retardant and it supports fire retardant properties. It is not affected by any bacteria and doesn't shelter.

Good initial tack and peel adhesion with verystrong holding power

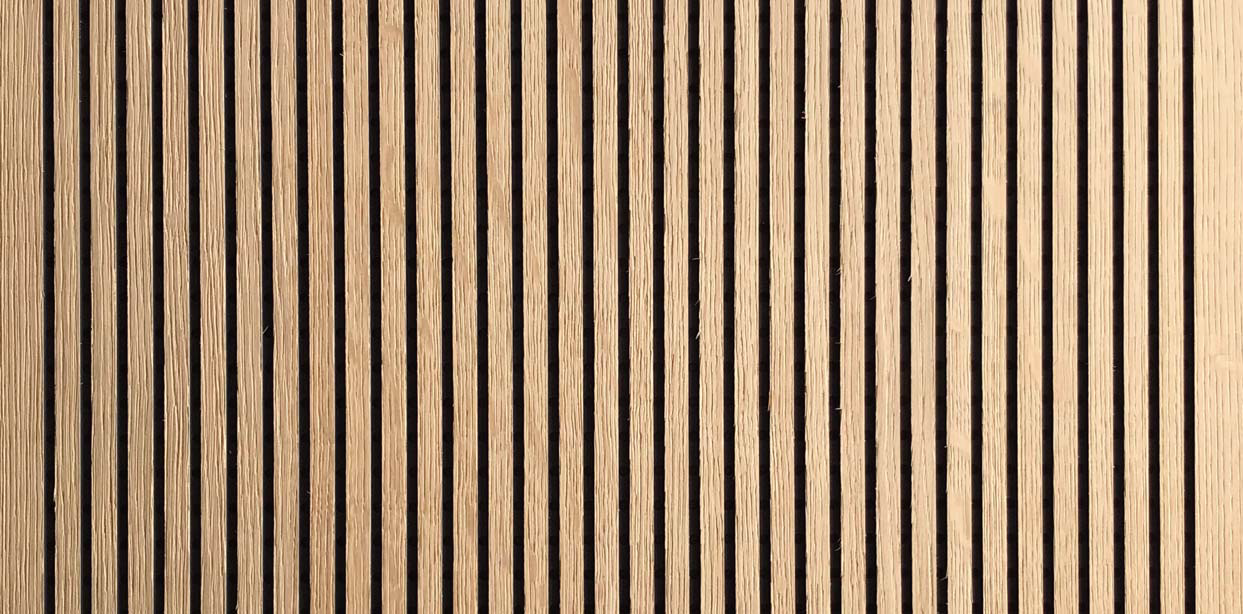

VSR dB Panel Slot is a acoustic panel.

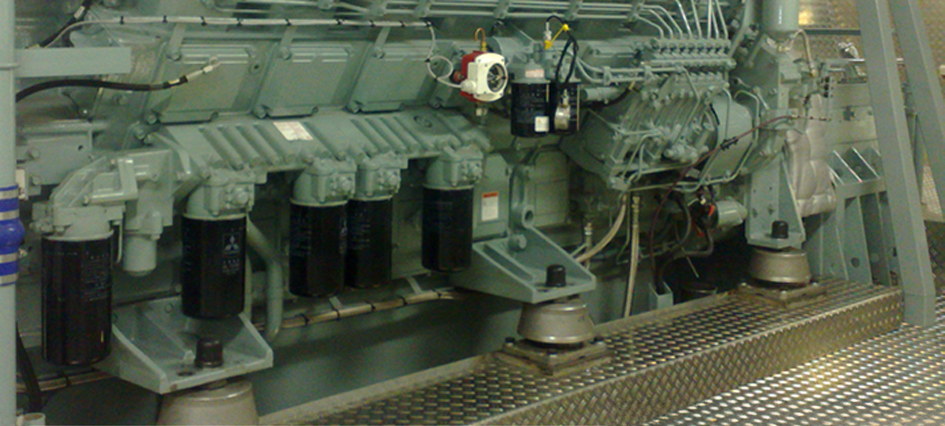

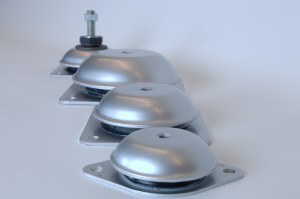

The range of anti-vibration mounts has been developed by Rubber Design to combine good vibration and sound insulating properties to practical applications.

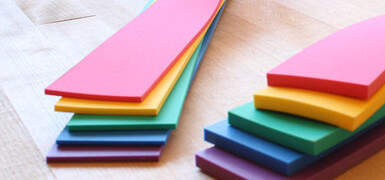

InnoFoam Silico-Sponge comes in a range of densities from 250kg/m3 (soft) 400 kg/m3 (medium)and 450kg/m3 (firm). Each density can be used for a range of applications depending on compression requirements. InnoFoam Silico-Sponge is closed cell meaning it has extremely low water absorption.

HSA-type Flexible Stabilizers are used to isolate and stabilize suspended pipe sections.

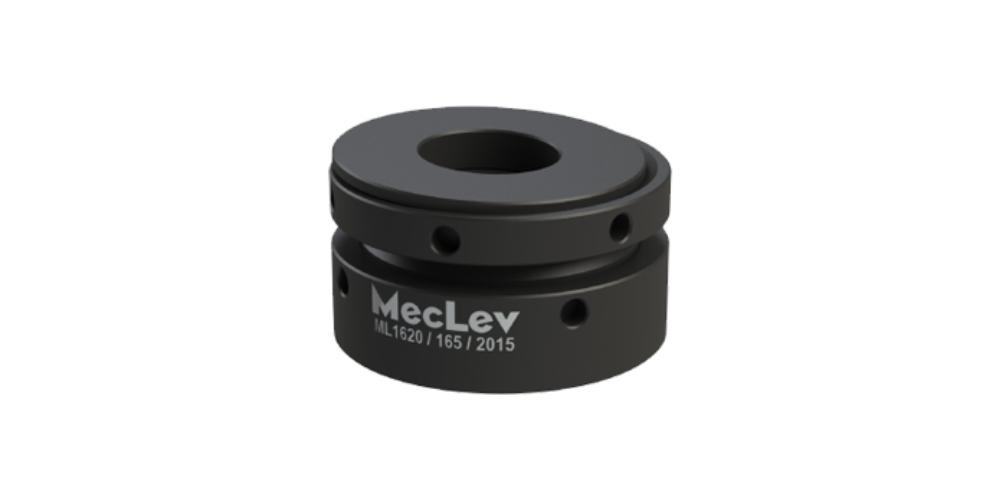

The MecLev® is an adjustable and re-usable steel mounting chock, that can be used for mounting all types of rotating or critically aligned machinery. The MecLev® is a mechanical stiff chock that is very easy to install and makes machinery alignment more simple, accurate and quick! The self-levelling feature in combination with height adjustment, eliminates the risk of soft foot problems underneath your machinery!

have excellent construction properties, strength and stiffness to weight ratio, good sound and thermal insulation.

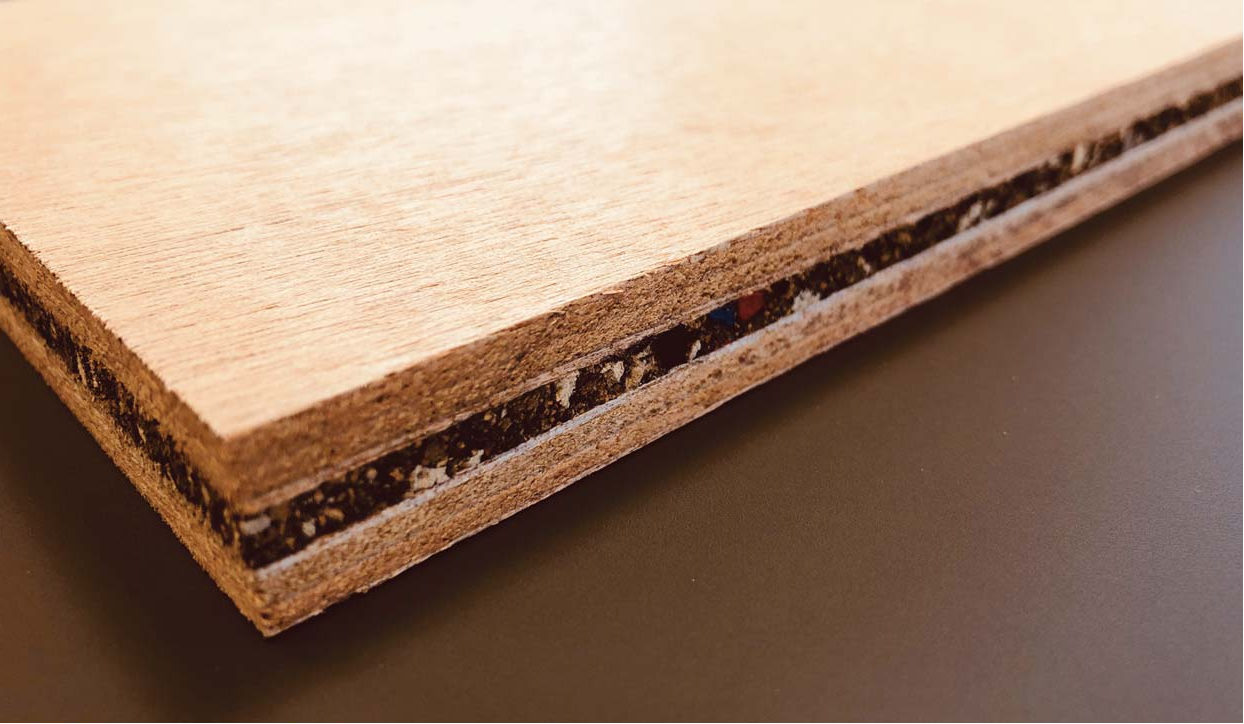

ACM 18 is an engineered cork, rubber, and EVA composite material.

In this unique product only the best quality fabrics and insulation materials are combined. This guarantees maximum safety and performance. The FiProTex® single pipe penetration seals, depending on the selected configuration, are suitable for A0, A15, A30 and A60 Decks.

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

SeaRox SL 720 is used for comfort insulation.

A new development in noise control.

Heat reducing bulkhead penetrations are especially designed to lead the exhaust gas pipe watertight through bulkheads or decks.

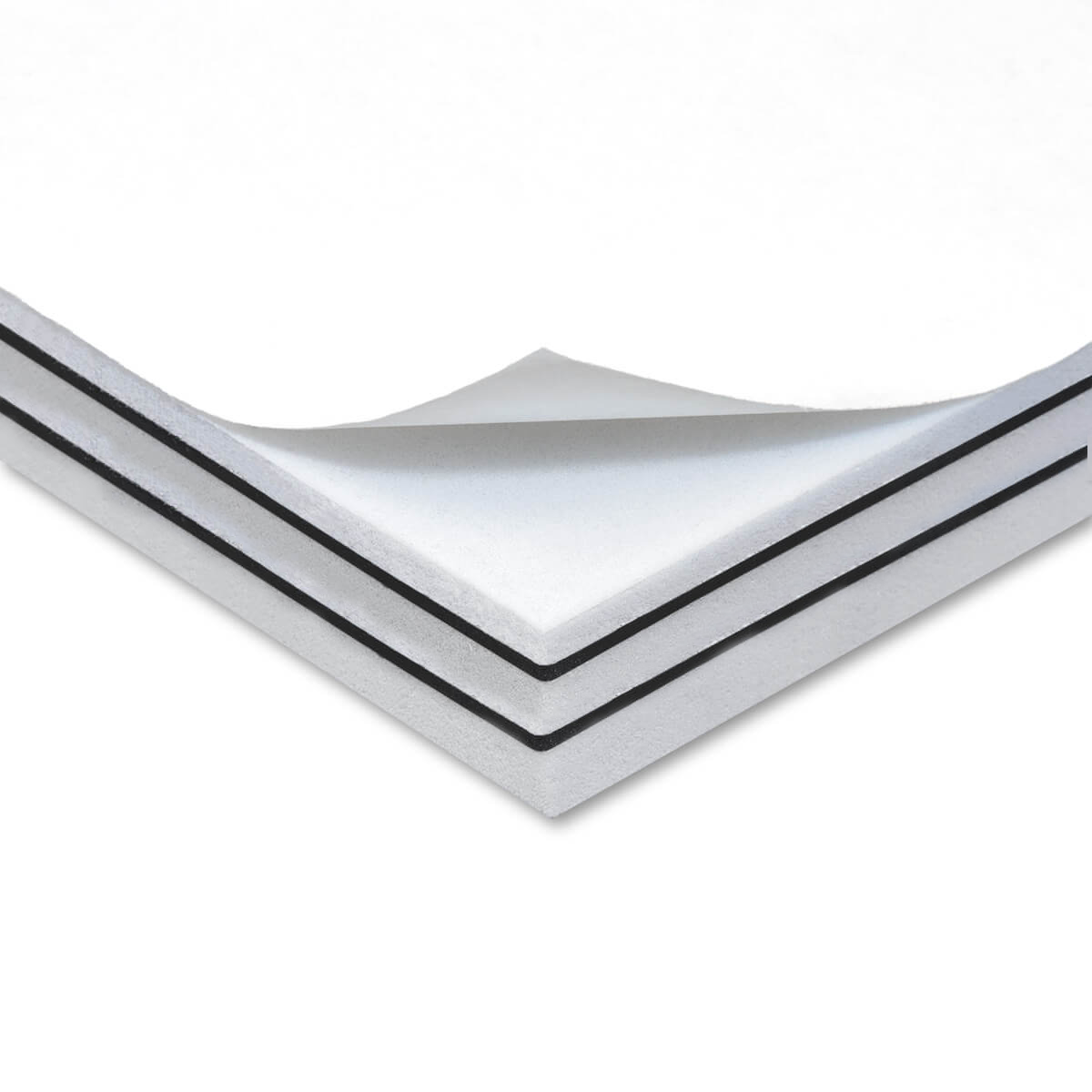

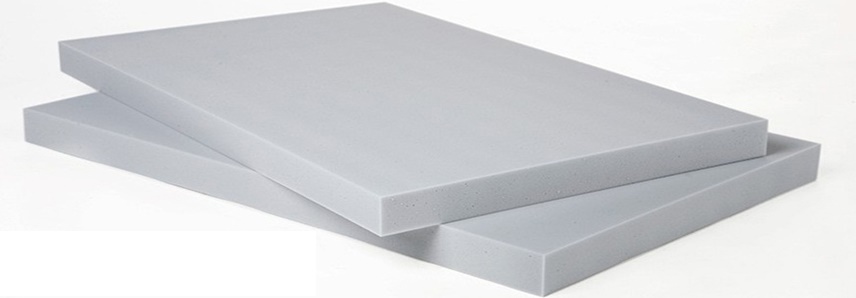

Anv Innovation’s melamine foams is open-celled, impregnated polyurethane foam for acoustic insulation. It's absorbed a mineral component which increases the ability of flame retardent and it supports fire retardent properties.It is not affected by any bacteria and doesn't shelter.

Round self locking washers is also named self clips. it is used in conjunction with weld pins, insulation anchors and lacing anchors to fasten insulation in place.

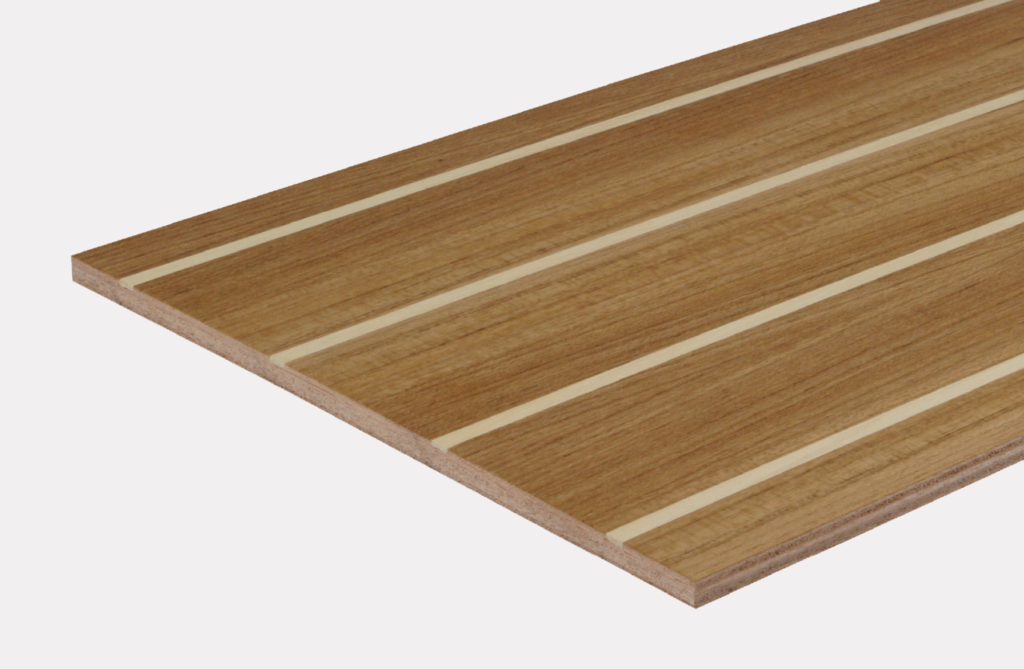

HPL FLOORING PANEL - HPL decorative lines also available with a 0.7 mm top layer - Dimensioning: 305.0 x 130.0 cm - Height: 0.7 mm - Border distance: 45 mm

The internal deflection limiter avoids overload and allows use for mobile applications on trucks and on board of ships. Because of the shape of the mount with the metal top the natural rubber is perfectly protected against oil and ozone.

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

HSA-type Flexible Stabilizers are used to isolate and stabilize suspended pipe sections.

Flexible, high-performance sound-damping solution for structural and mechanical noise control.

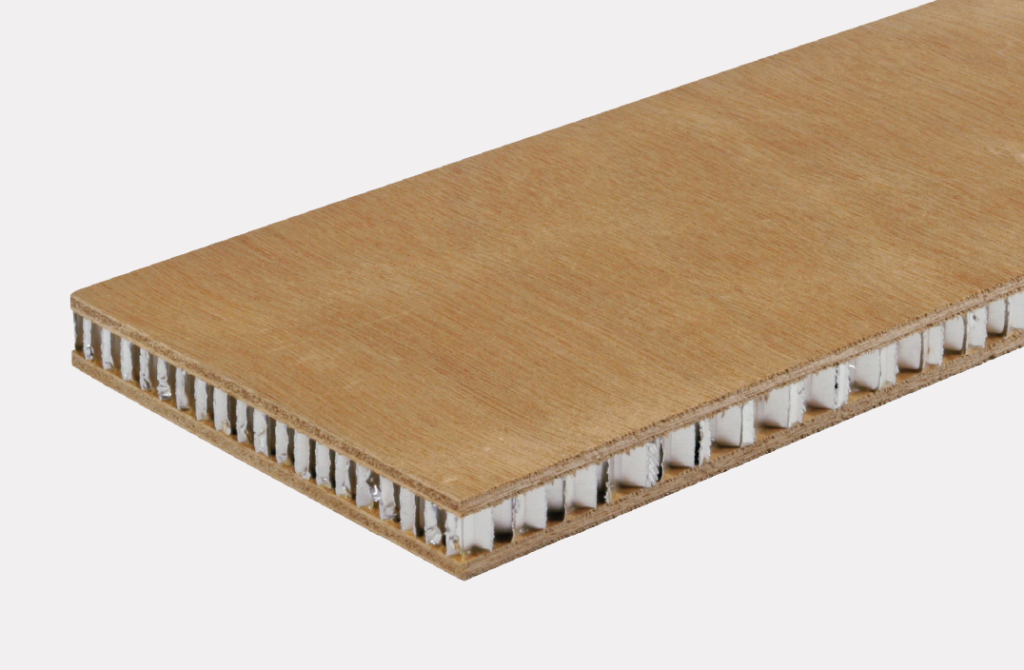

SANDWICH PANEL ALU HONYCOMB have excellent construction properties. The panels are made in standard sizes as well as special structures.

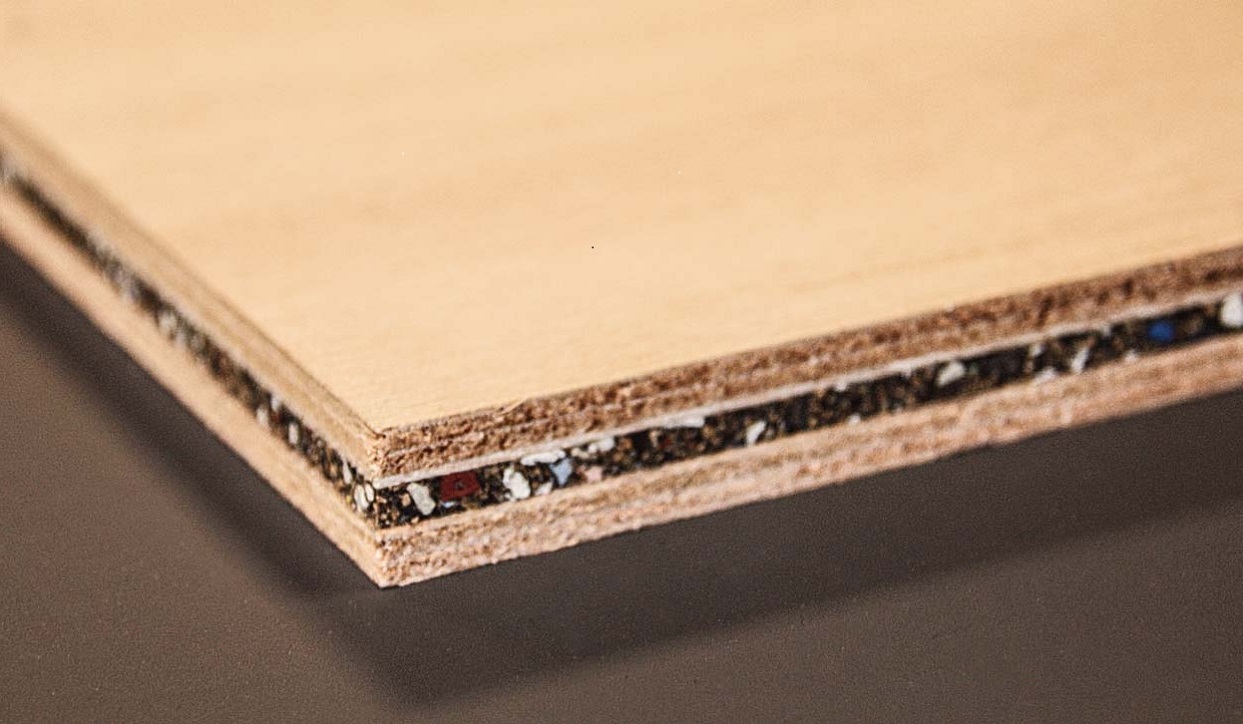

ACM 16 is an engineered cork, rubber, and EVA composite material.

The TT (Thrust Torque) mounts are especially developed for the high powered / low weight, close coupled engine / gearbox combinations. The unique mount design characteristics enables the mount to transmit both Thrust and Torque forces while ensuring an excellent vibration isolation.

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

SeaRox SL 320 is  primarily used for sound insulation.

A new development in noise control.

The standing fixed points support the exhaust system and control the dynamic forces, which occur in the system while the vessel is in operation. The fixed points control the direction of the thermal expansion within the exhaust system.

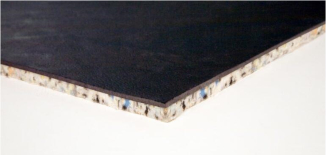

Impactalay 12mm thick Acoustic Matting is made from a single acoustic barrier mat layer with a resilient chip foam core. The acoustic foam does not harden or crumble, unlike the Class O foam normally found in these applications.

*110 Gr Glass Cloth....

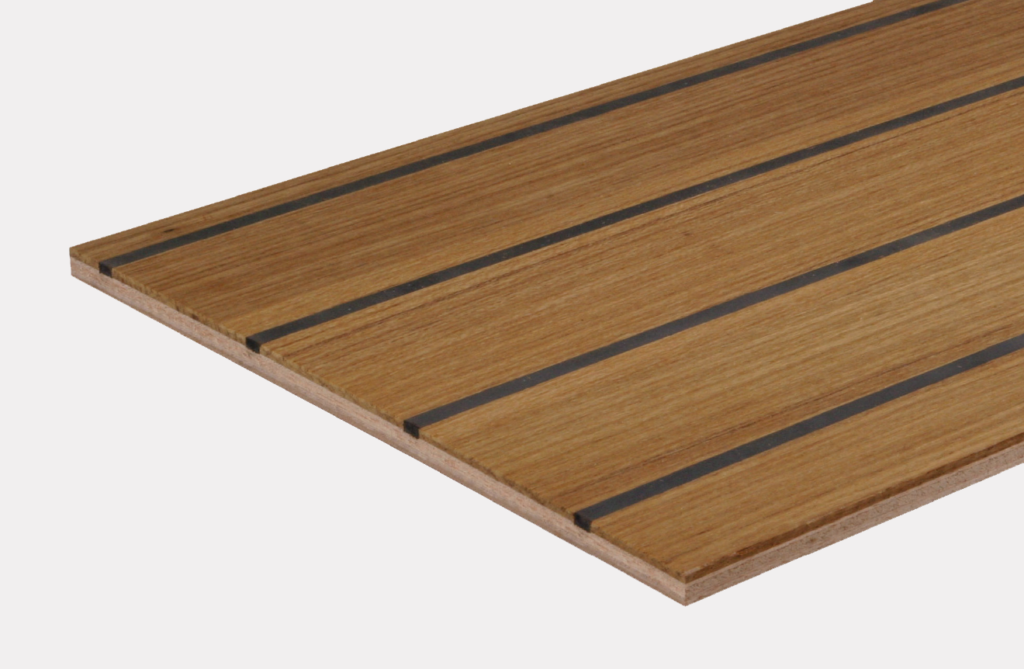

Cabin Sole Rubber Stripe flooring panels for interior are flooring panels with a top layer of 1,4 or 2,4 mm teak veneer. These cabin sole panels have a standard size of 50 mm between stripes and the width of each stripe is 5mm. Other distances between stripes or stripe widths are available on demand. The core panel is okoume (gaboon) ply-wood and is available in many thicknesses. The bonding of the veneer is of exterior quality. The rubber that is used for the stripes is similar to the rubber used for laying teak decking.

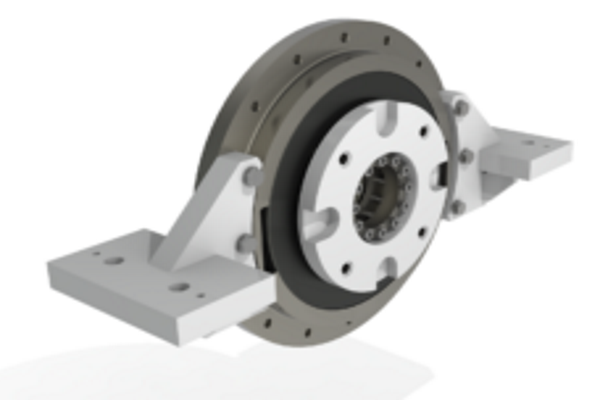

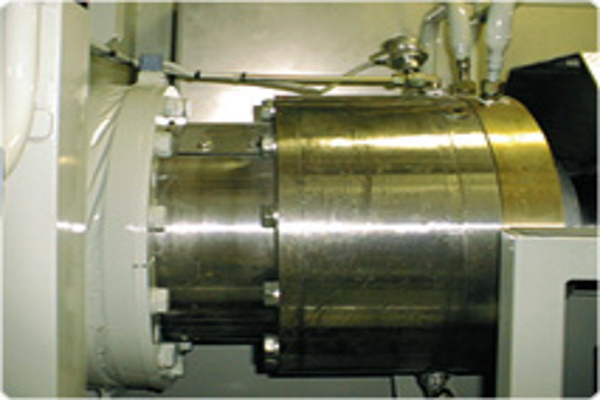

Rubber Design has developed a compact range of thrust blocks in combination with their ERD Marine Couplings for high performance operation in yachts and ships.

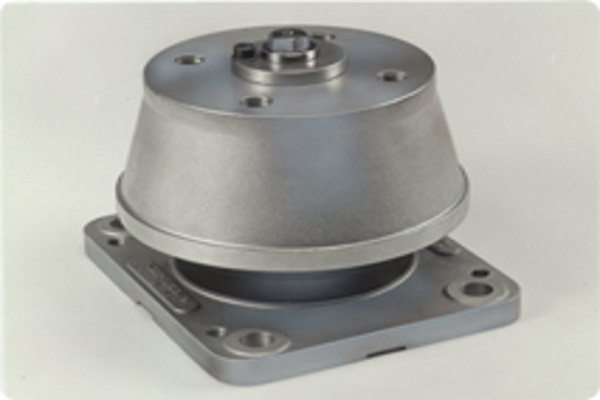

The range of conical mountings was designed especially with medium speed engines in mind. The conical design provides high deflection and load capacity combined with long service life.

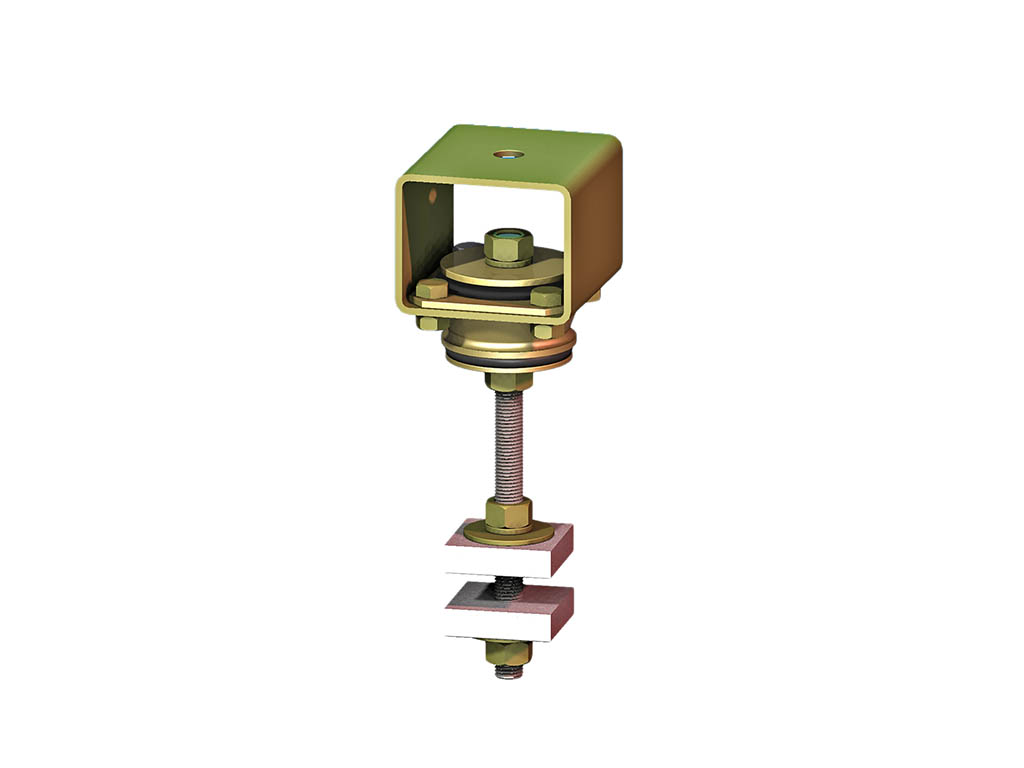

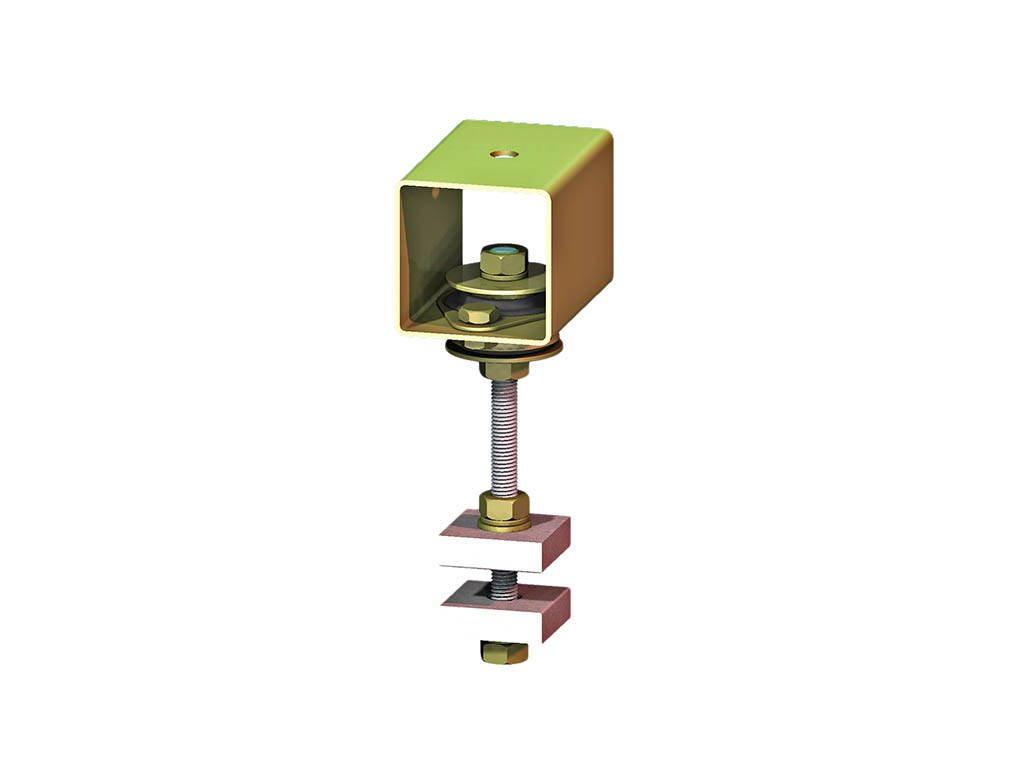

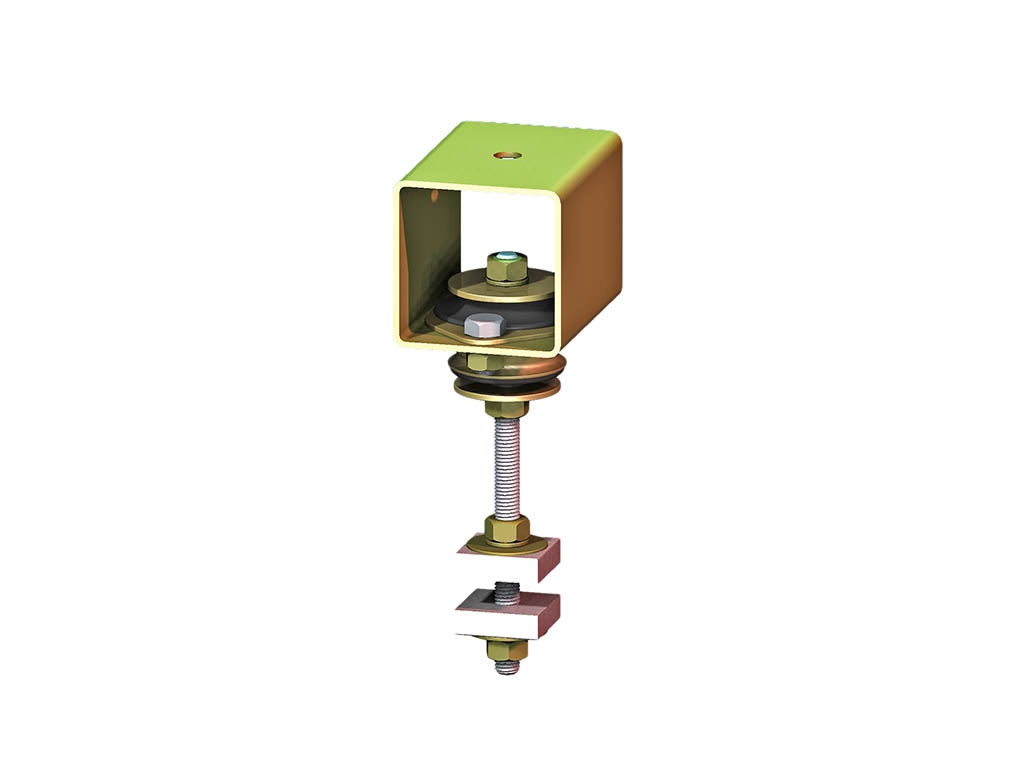

HFA-type Flexible Fixed Points are used to support both pipe sections and exhaust silencers and are fitted with thermal insulating plates for heat protection.

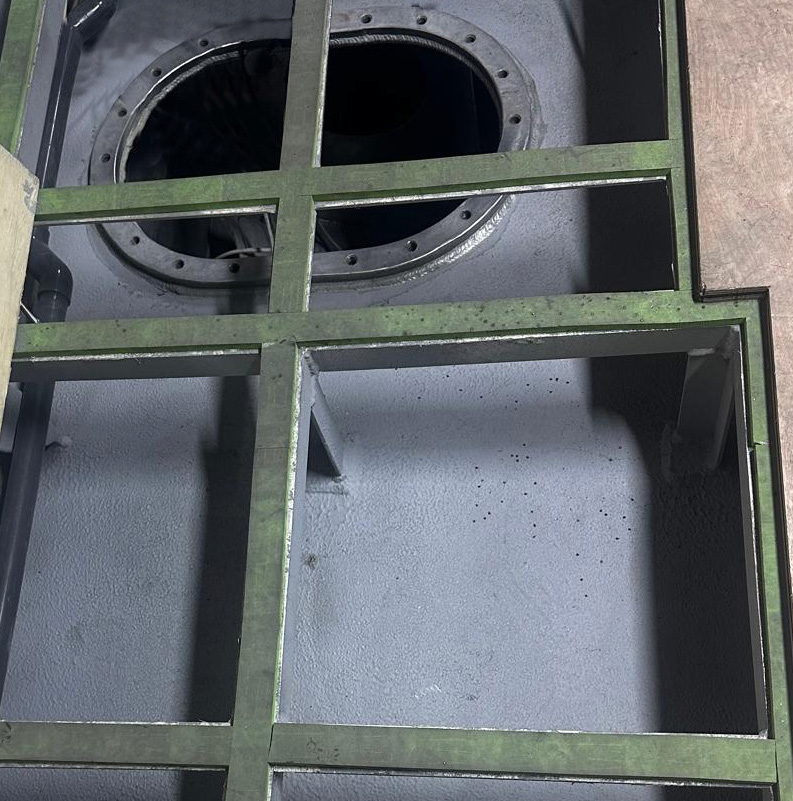

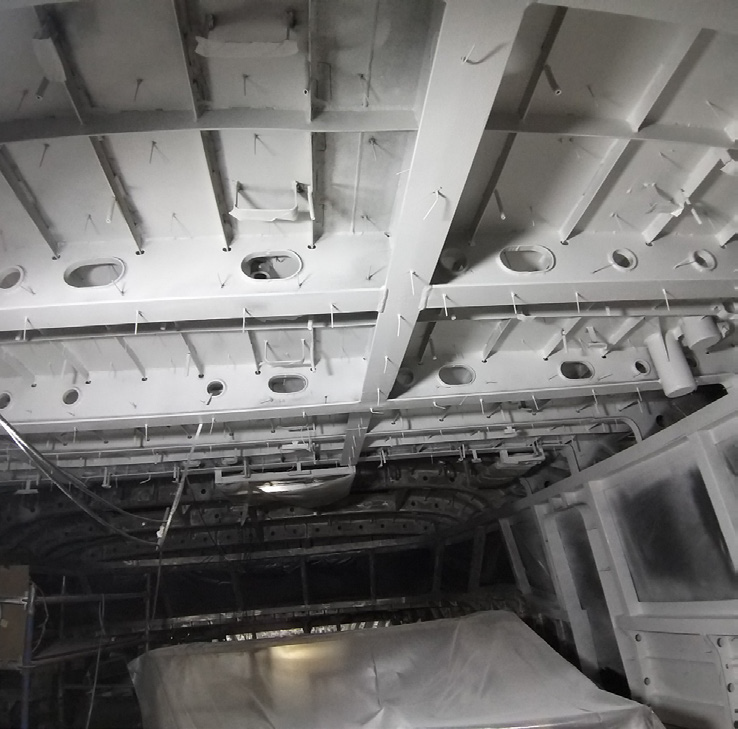

RenCoat ACC is a revolutionary water-based acrylic coating designed to deliver powerful thermal insulation and effective anti-condensation protection—all in one simple application.

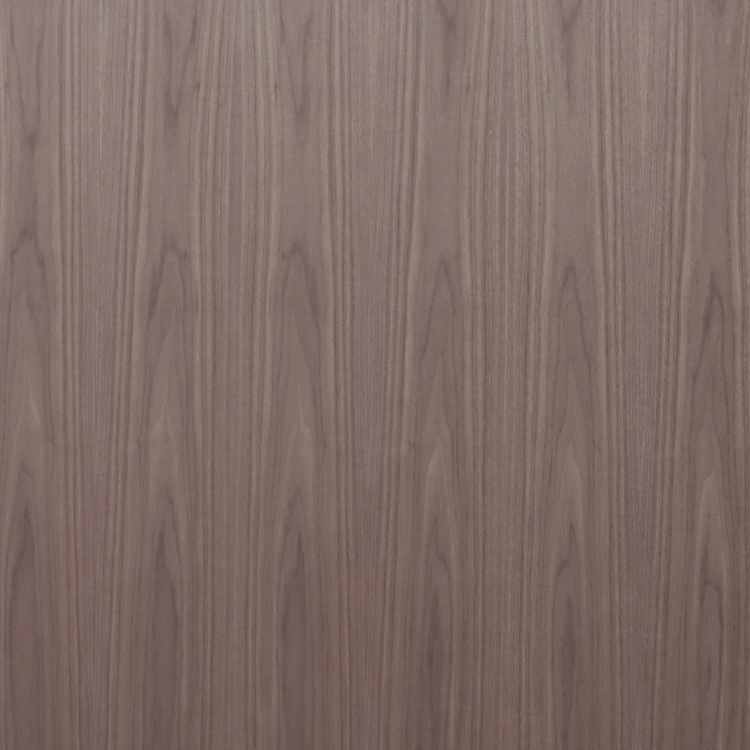

Walnut Thickness: 0,6 / 1,4 / 2,4mm Structure: Crown / Quartercut*/ Mixmatch / Mixed * Quartercut on request

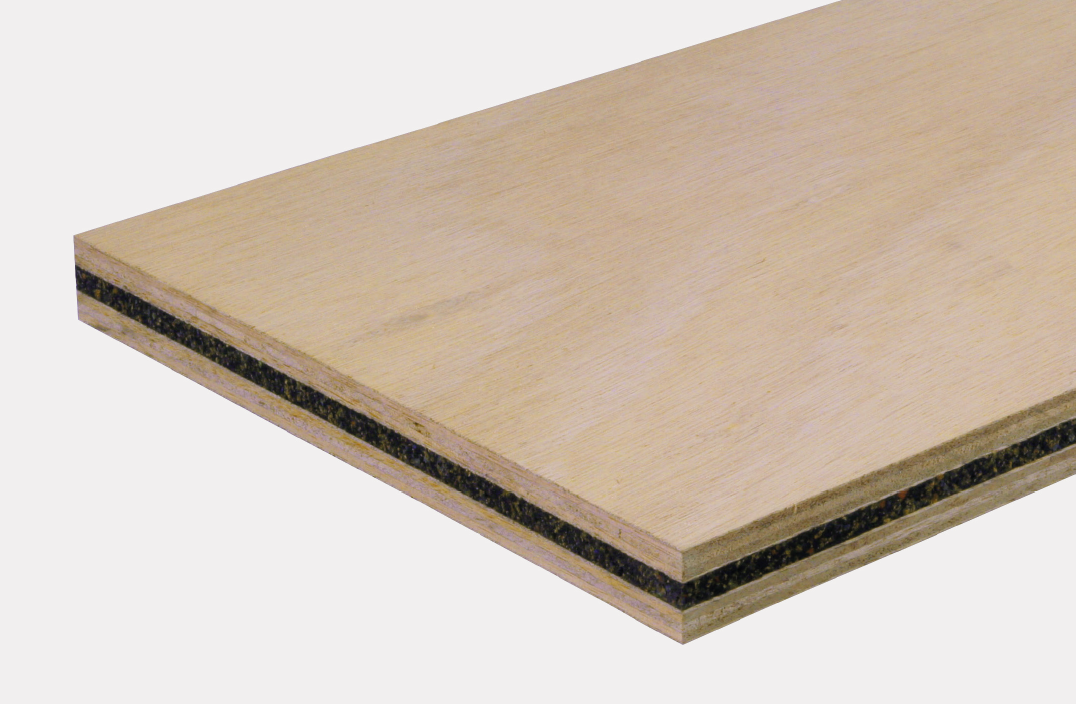

Sonopanel CR9 is a "light" version of the X panels. CR stands for Cork/Rubber and figures 9 indicates the density which in this case is 965 kg/m3.

Sandwich mountings are perfectly suited for these installations based on their high permanent workload capacity, and their excellent isolating capabilities, combined with a relatively low price. Besides, installation of these mountings is very easy, both on initial assembly as well as upon replacement of the sandwich mountings.

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

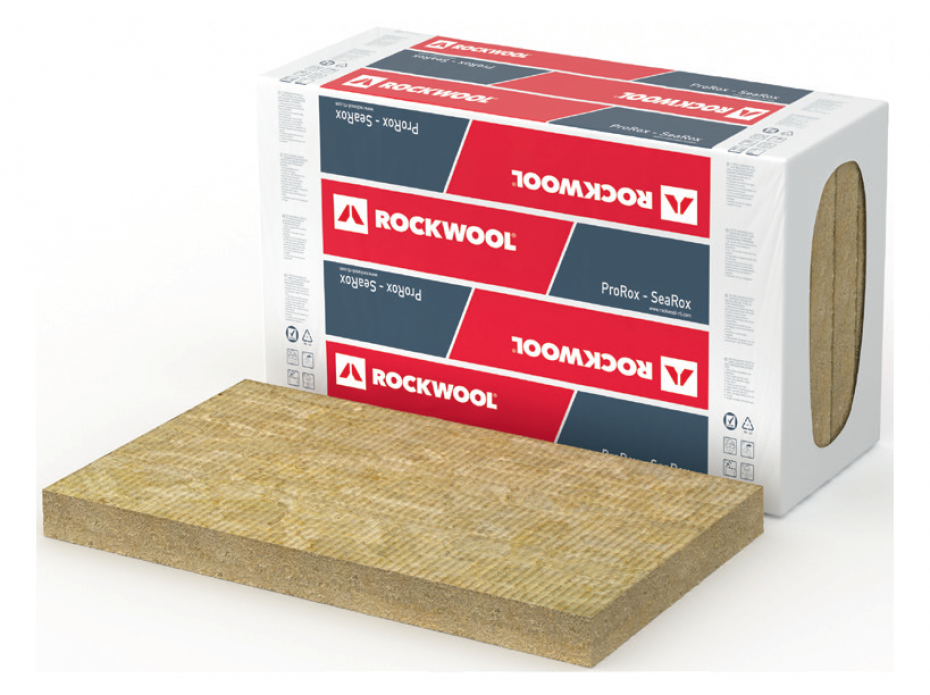

SeaRox SL 620 is primarily used as part of approved A constructions for Deck and Bulkhead.

have excellent construction properties. The panels are made in standard sizes as well as special structures.

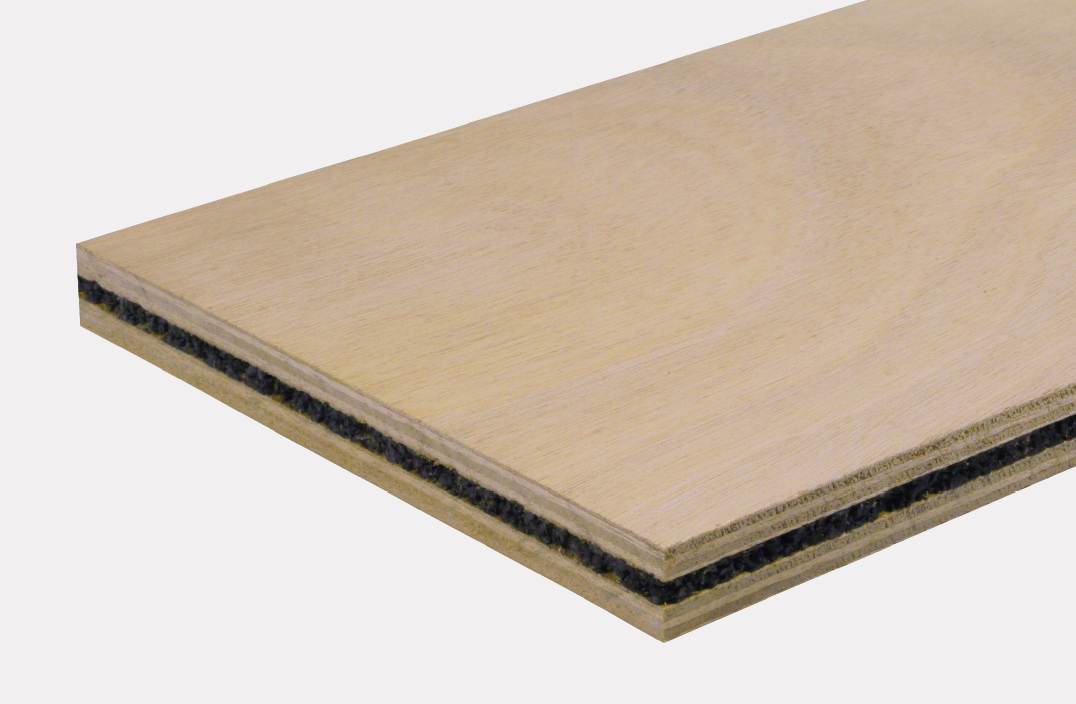

SONOPANEL- L is the “light” version of the “X” panels with a core of PU bonded recycled rubber called Rugran. Despite the weight reduction of roughly 5 kg/m2 SONOPANEL- L provides an excellent result. The Rugran rubber/PU matting is a composition of polyurethane bonded recycled rubber and has a density of roughly 650 kg/m3. Its flexibility provide a diminished vibration radiation of the sandwich panel.

The FPT pipe passage seals are suitable for A0, A15, A30 and A60 bulk-heads, depending on the selected configuration.

InnoFoams is a white, open-cell, impregnated polyurethane foam used for acoustic insulation.

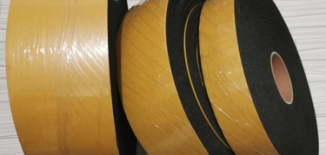

Inno Tape Fabric provides professional solutions like fastening, bundling, strengthening, marking and much more.

Cabin Sole Light Stripe is a flooring panel for interior use with a top layer of 0,6 - 1,4 mm teak veneer. These cabin sole panels have a standard size of 50 mm between stripes and the width of each stripe is 5mm. Other wood species, distances between stripes or stripe widths are available on demand. The core panel is okoume(gaboon) plywood and is available in many thicknesses.

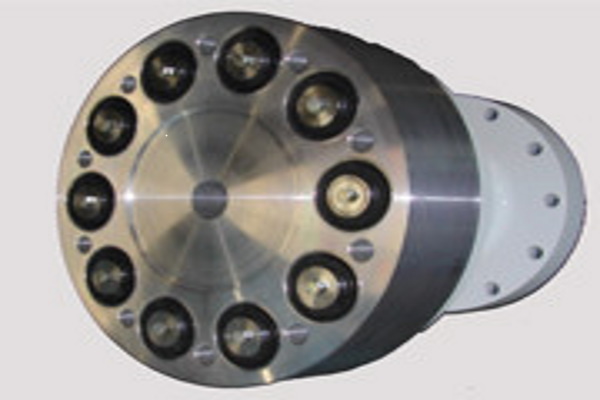

Although specifically designed as a marine propulsion secondary coupling, its use is not limited to the main propulsion only. Other well-suited applications are waterjets, thrusters, alternators, electric motors and (hydraulic) pumps.

Engineered to reduce airborne sound transmission in compact, durable metal panel constructions.

HFA-type Flexible Fixed Points are used to support both pipe sections and exhaust silencers and are fitted with thermal insulating plates for heat protection.

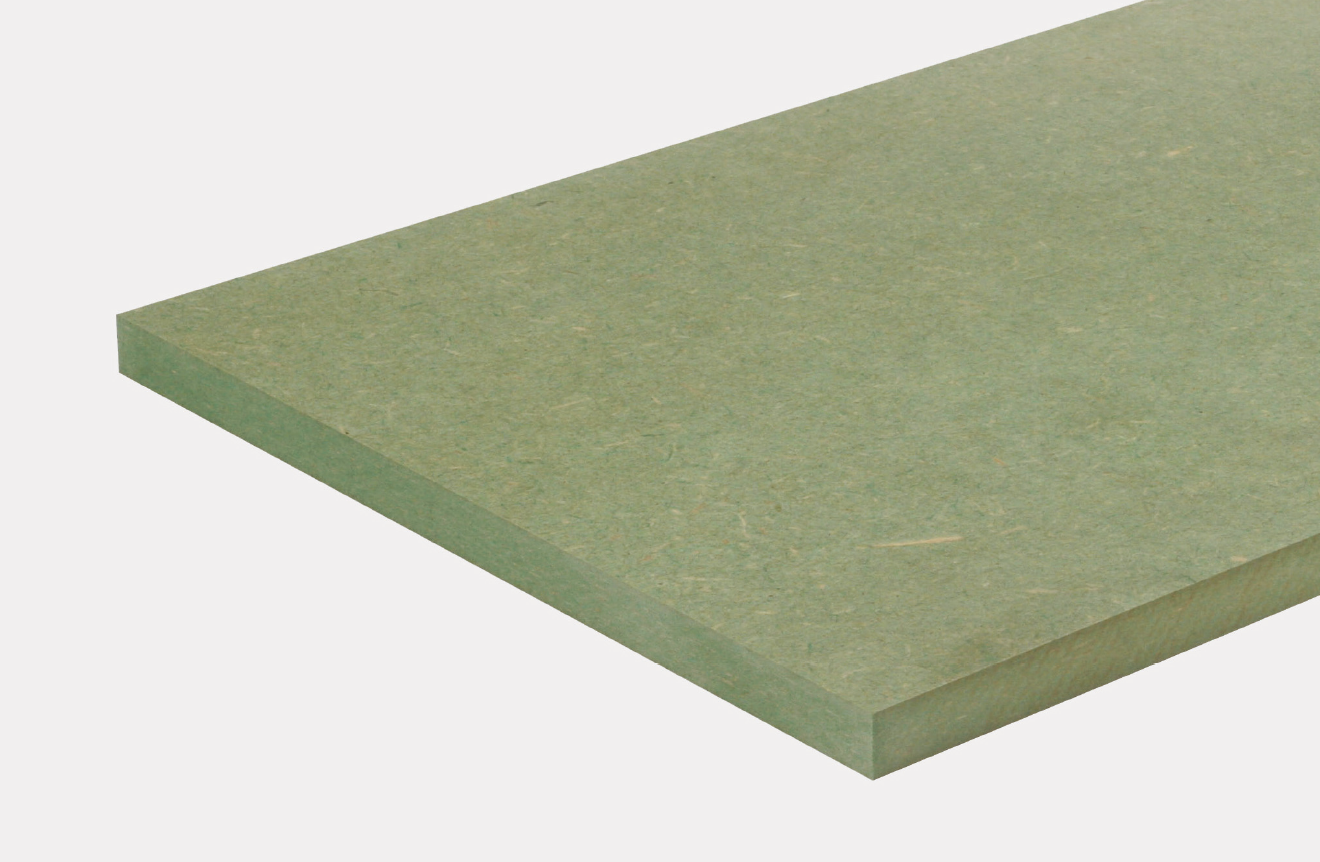

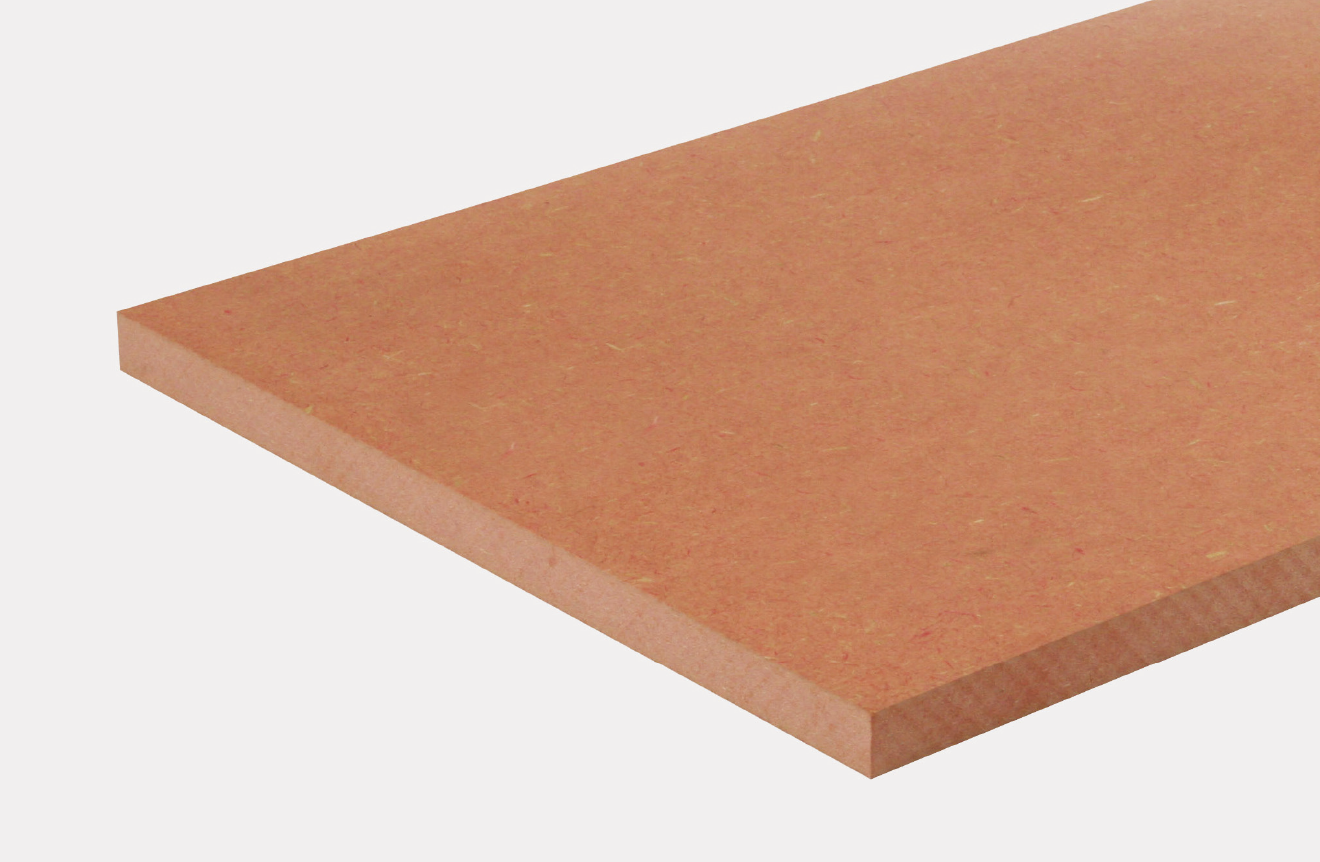

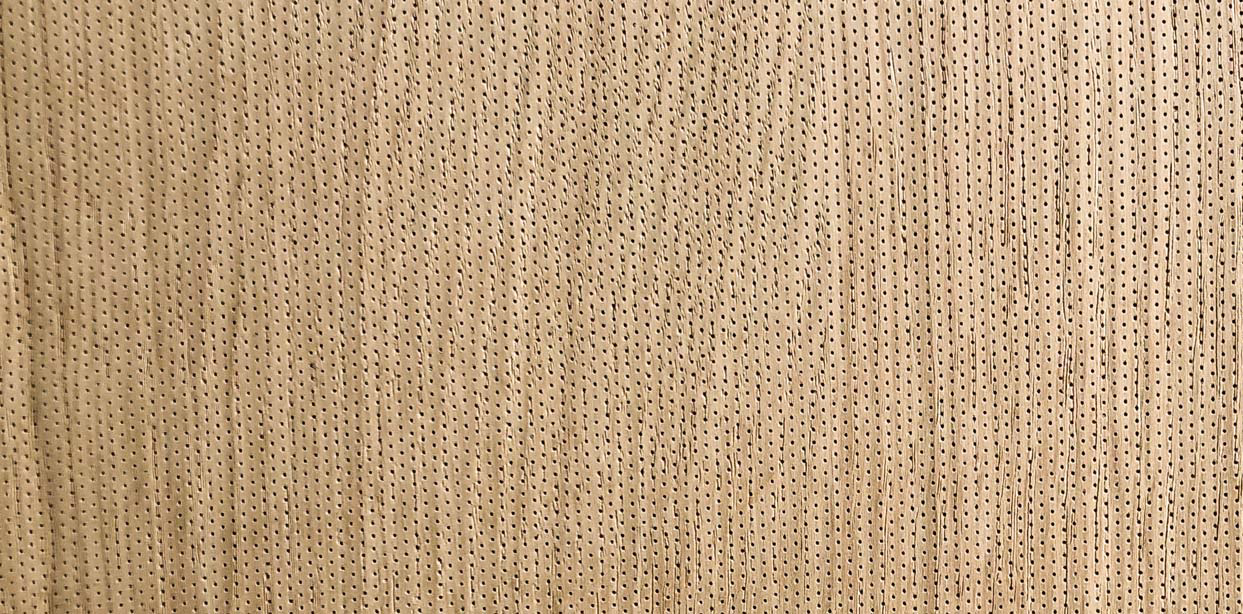

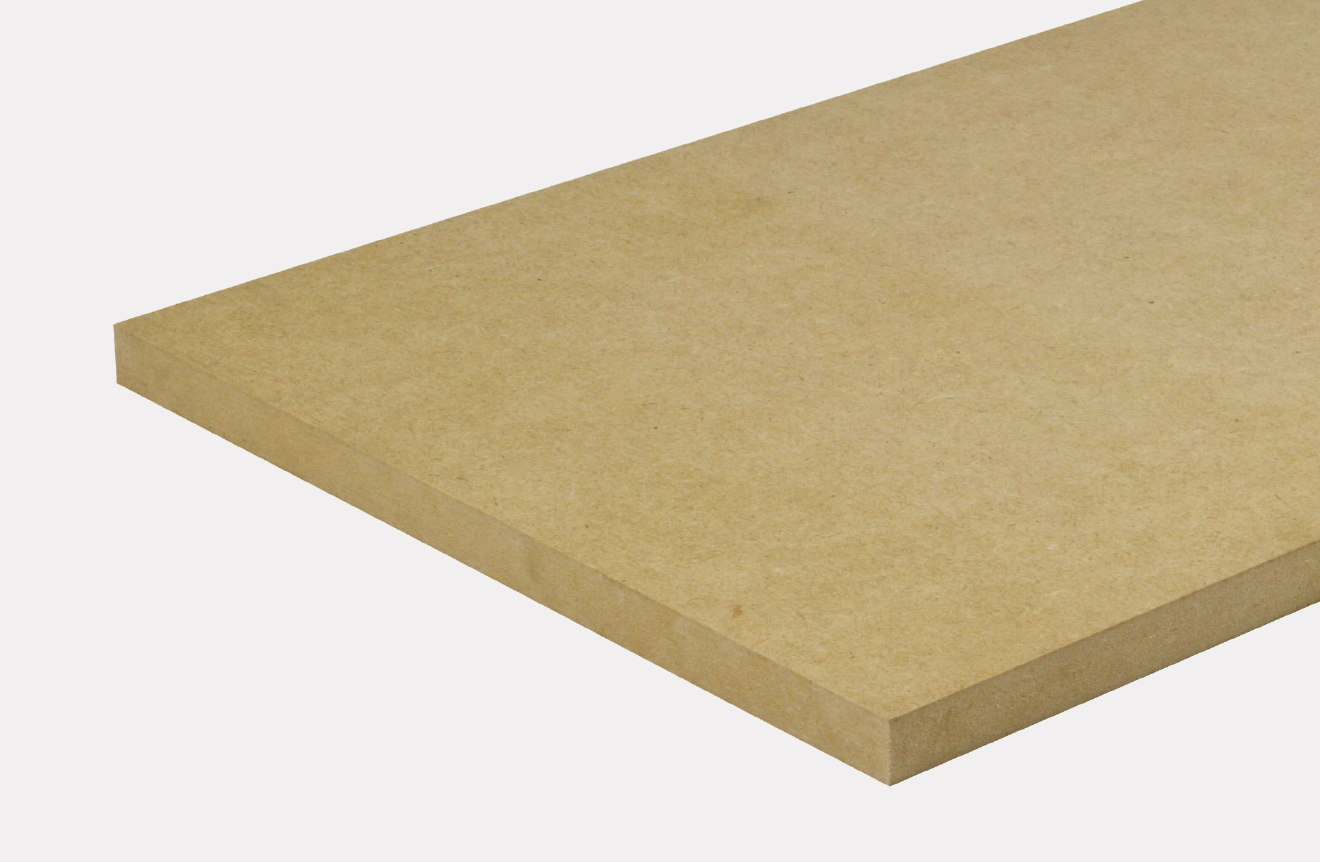

VSR dB Panel Micro is an acoustic panel. It can be MDF (standard, moisture-resistant, or fire-retardant) or plywood.

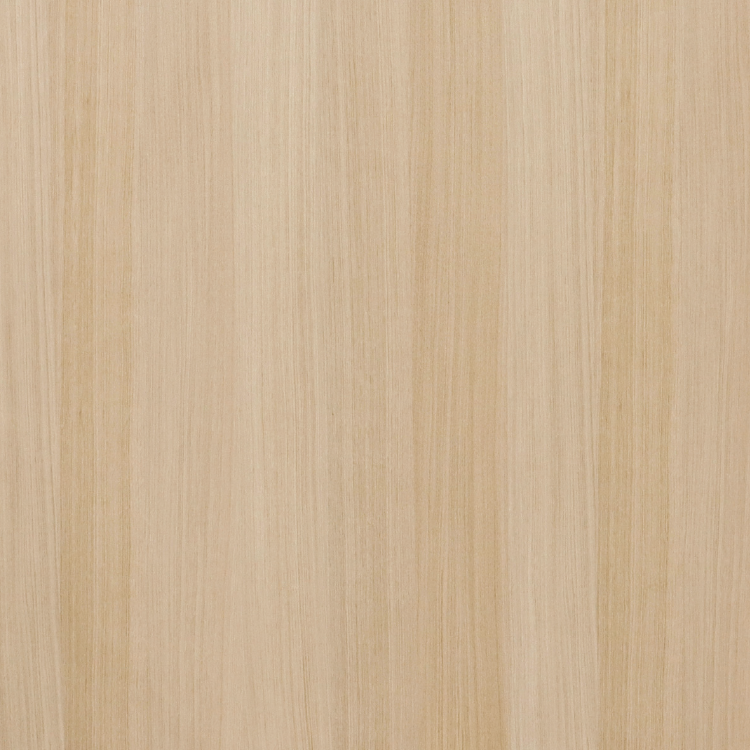

Oak Thickness: 0,6 / 1,4 / 2,4mm Structure: Crown / Quartercut / Mixmatch / Mixed

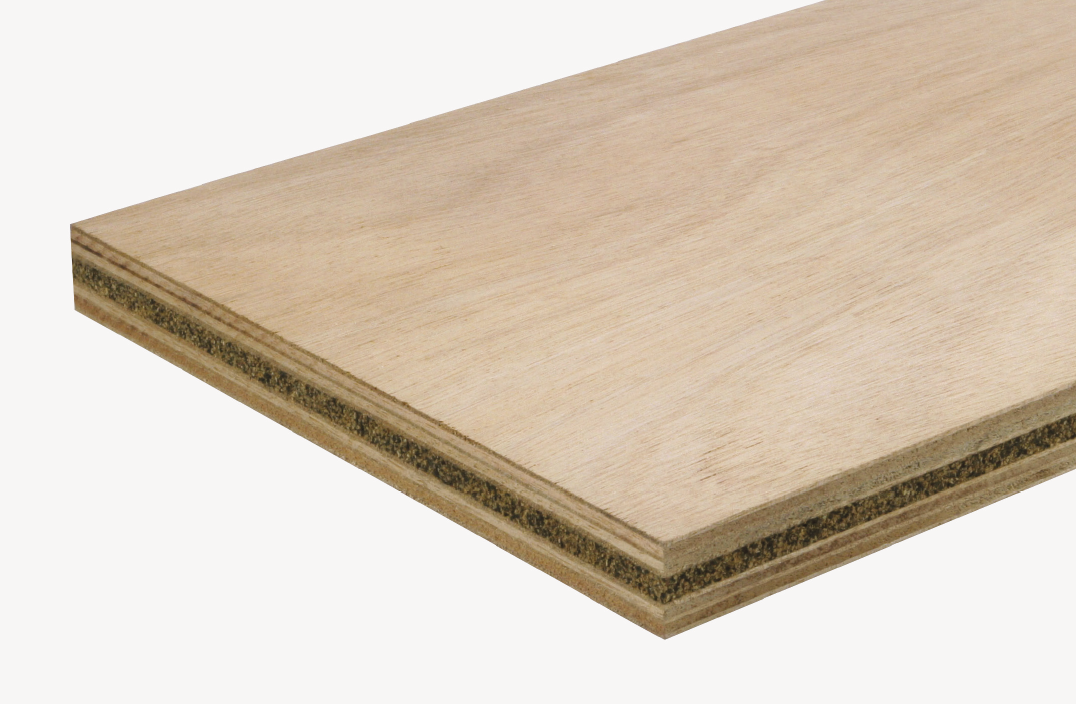

Sonopanel CR6 is a "light" version of the X panels. CR stands for Cork/Rubber and figures 6 indicates the density which in this case is 650 kg/m3.

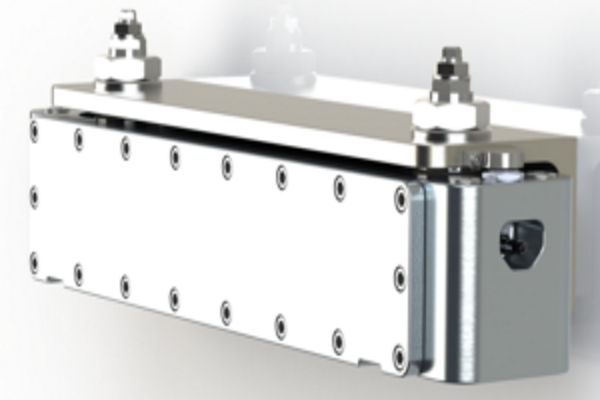

The originally designed for gearboxes and close coupled engines/gearboxes, the mount arrangements are particularly versatile and can be used for many other applications.

FFP-type Flexible Fixed Points are used to support both vertical pipe sections and exhaust silencers.

In the realm of sound insulation, a thorough review of key metrics such as STC and Rw is essential to ensure effective noise control and optimal acoustic performance. Our commitment to delivering top-tier sound insulation solutions is underscored by a detailed examination of these critical parameters.

have excellent construction properties. The panels are made in standard sizes as well as special structures.

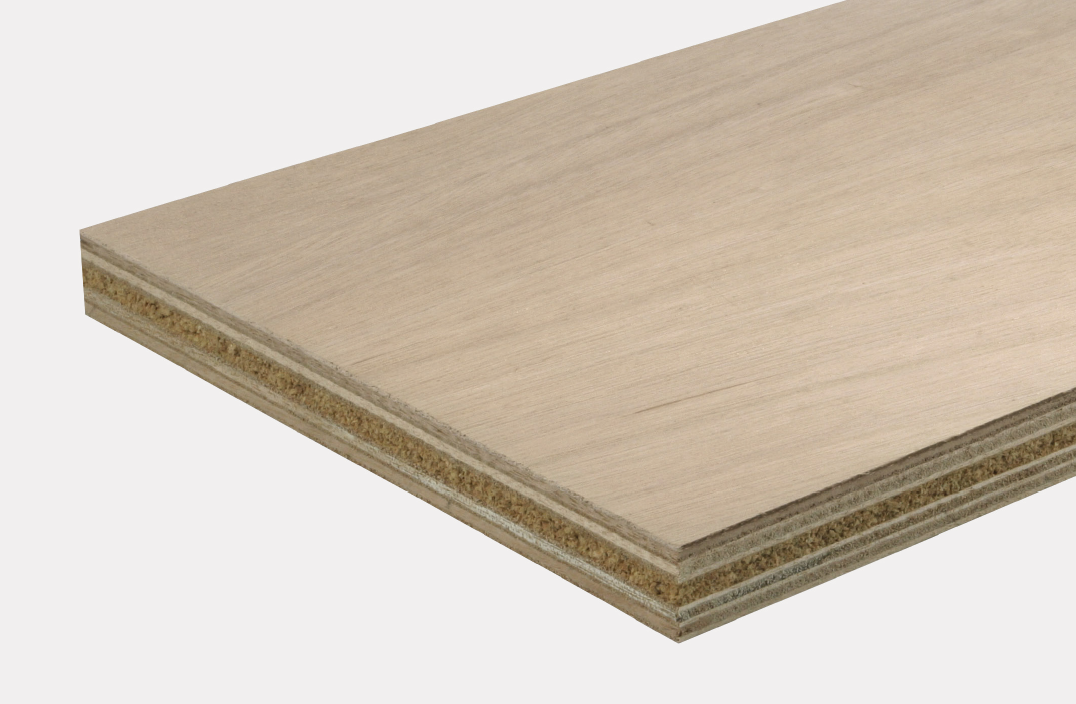

SONOPANEL C2 is a lightweight panel that gets its acoustic properties from a cork core with a density of 200 kg/m3.

Rubber Design supplies a stainless steel bellows with a low stiffness, which, in combination with our flexible suspension, achieves the best control of vibrations and forces in pipe systems which provides optimal lifetime.

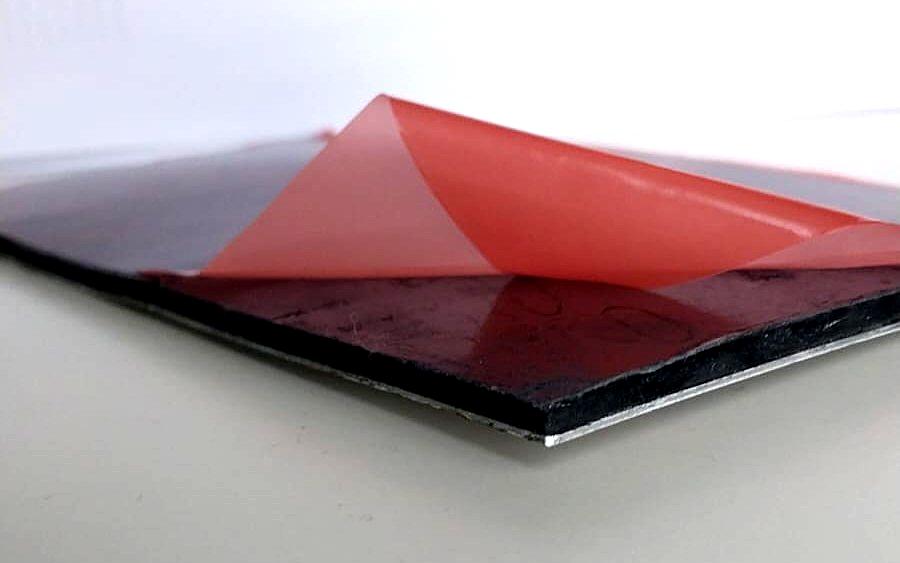

InnoDamp FA 4.2mm is a high-performance self-adhesive sound deadening tile specifically designed for the marine industry.

Cabin Sole Dark Stripe is a flooring panel for interior use with a top layer of 0,6 - 1,4 mm teak veneer. These cabin sole panels have a standard size of 50 mm between stripes and the width of each stripe is 5mm. Other wood species, distances between stripes or stripe widths are available on demand. The core panel is okoume(gaboon) plywood and is available in many thicknesses.

A separate thrust block allows for an optimum flexible mounting system of engine and gearbox (close coupled) leading to the best results for noise and vibration isolation of the propulsion system.

PVC Acoustic Sound Barrier is a high-density flexible sound insulation membrane designed to reduce airborne noise transmission through walls, ceilings, floors, and technical enclosures.

HFA-type Flexible Fixed Points are used to support both pipe sections and exhaust silencers and are fitted with thermal insulating plates for heat protection.

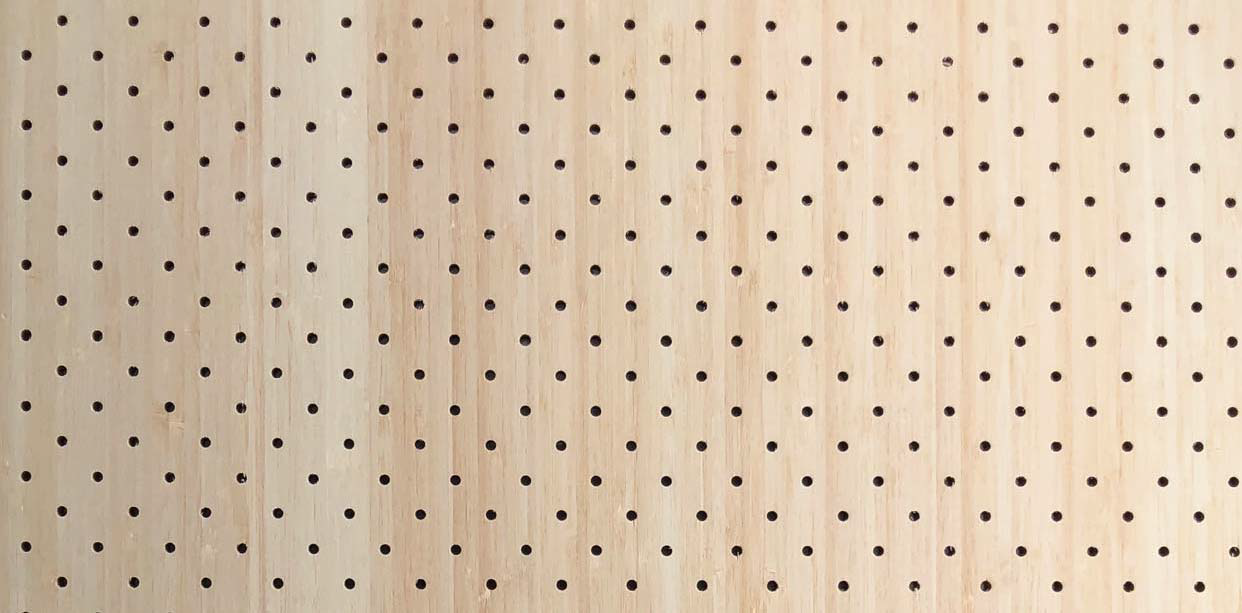

VSR dB Panel Perfo is an acoustic panel. It can be MDF (standard, moisture-resistant, or fire-retardant) or plywood.

Meşe Kalınlık: 0,6 / 1,4 / 2,4mm Yapı: Taç / Çeyrek Kesim / Mixmatch / Karışık

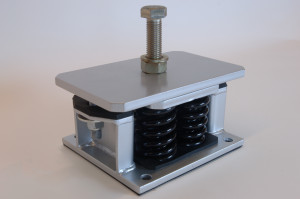

The range of standard spring isolators allow up to 25 mm static deflection and are specially designed for land based installations with high vibration isolation. Where greater static deflections is required, the 50 mm deflection springs in the standard housings can be selected.

TG (Torque Gearbox) or so called semi elastic suspensions were designed specially for free standing gearboxes and/or close coupled high speed engines/gearboxes where the mounts have to absorb the torque reaction in combination with full propeller thrust.
